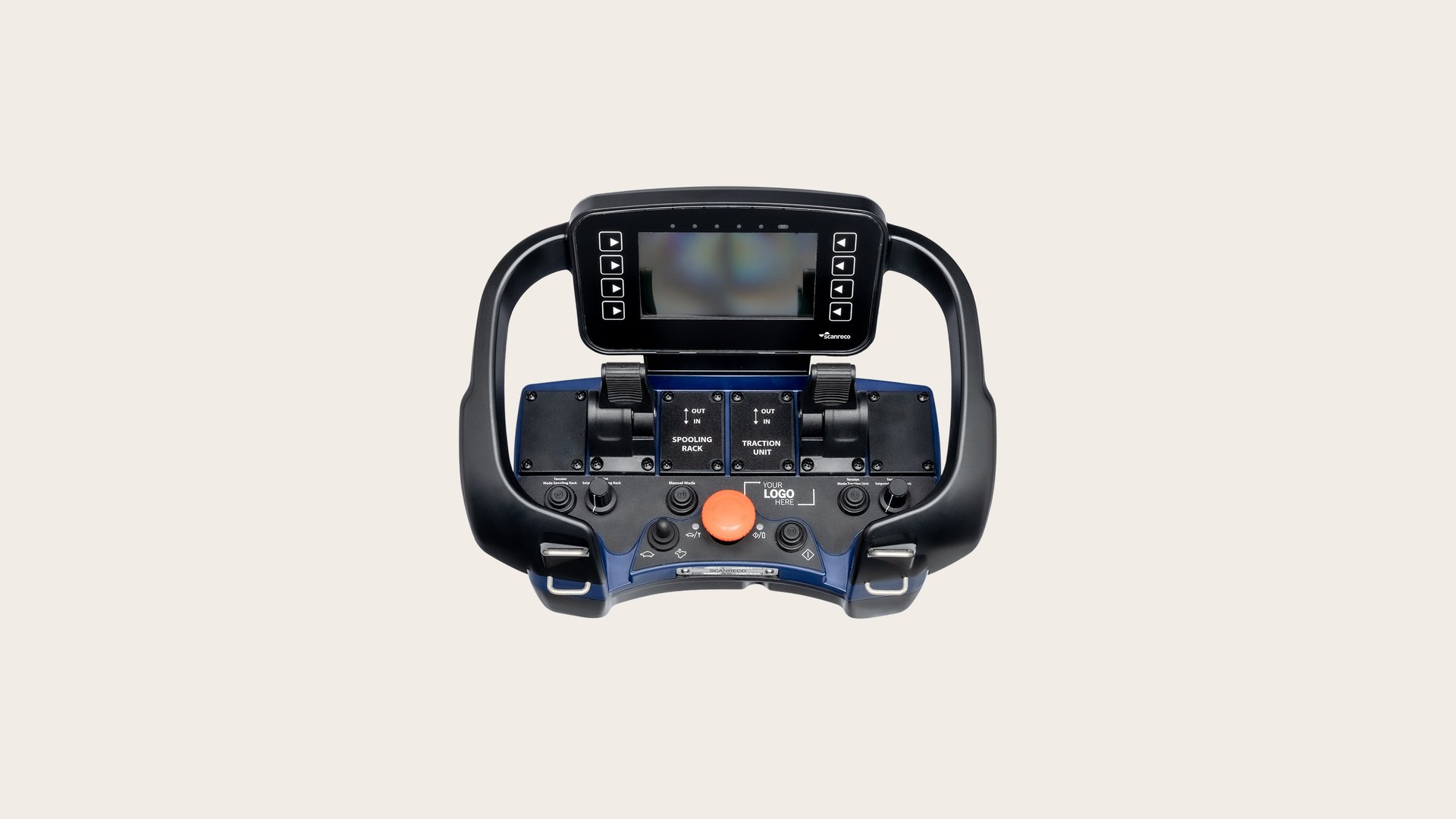

Mini Lever

Engineered for rigorous use and steady performance

Your equipment must deliver reliable control and help enable safer operations every single day. The Mini Lever transmitter answers that need by offering a robust, lever-based design capable of standing up to constant, demanding tasks. Featuring up to six durable levers, tested for up to five million cycles, this transmitter provides a reliable solution that operators can depend on in challenging environments.

Compliant with ISO 13849 (PL d) and maintaining an ergonomic layout that encourages comfortable handling. Developed through decades of remote-control expertise, it promises both consistent performance and straightforward integration. If you’re seeking a transmitter designed to handle extended use without compromising safety or control precision, Mini Lever is an excellent choice.

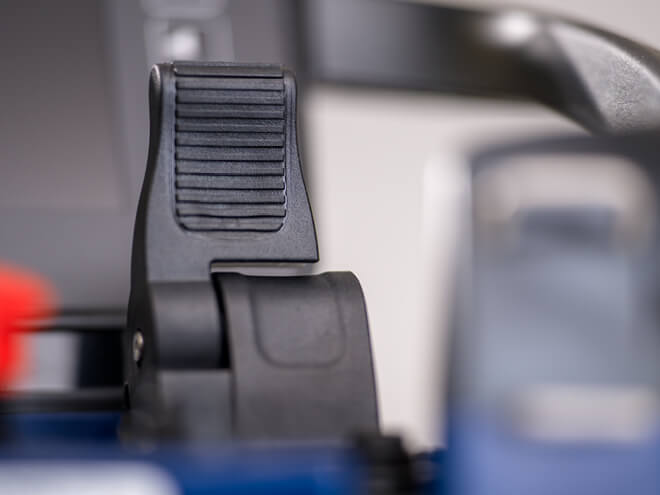

Product page_Mini Lever_Robust Lever design

Reliability

Sturdy lever design

Mini Lever’s core strength lies in its lever-design, built to endure up to five million actuations. These high-quality Scanreco-designed levers combine precision and ergonomics, allowing operators to remain focused and in full command of your machinery. Whether you select one lever or the full set of six, this robust design is key to dependable, long-term functionality.

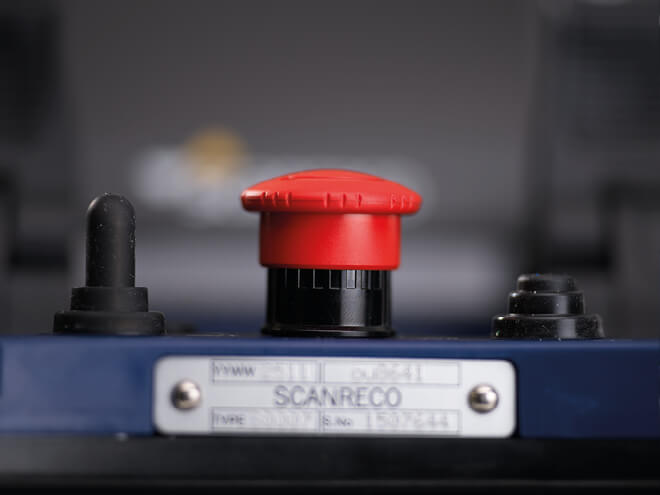

Product page_Mini Lever_Established functional safety

Safety

Established functional safety

By choosing the Mini Lever, you gain a remote control solution with a safety function that’s already designed and validated to meet ISO 13849 (PL d) standard. This means you can incorporate a dependable, safety-classified function into your equipment—supporting modern regulatory expectations. Mini Lever’s built-in safety features help you deliver consistent, reliable equipment performance.
Product page_Mini Lever_Modular design

Configurable

Modular flexibility

With options ranging from one to six levers, additional buttons and switches, and even optional displays, the Mini Lever can be configured to match your specific application demands. This modular flexibility ensures you gain only the functionality you need, streamlining installation and boosting overall user satisfaction.

Benefits

Why choose Mini Lever?

For OEMs prioritizing robustness, reliable safety, and long-lasting performance, the Mini Lever transmitter offers an efficient control solution backed by extensive engineering experience.

Certified functional safety

Built to meet the requirements for PL d (ISO 13849) , enabling safer machine control and helping you comply with stringent industry regulations.

Ergonomic, durable design

Designed to keep operators comfortable and in control, reducing fatigue during long work sessions and promoting accurate task execution.

Proven technology heritage

Derived from decades of remote-control development, Mini Lever has undergone rigorous testing to ensure consistent, stable performance under demanding conditions.

Global market access

Supporting 433 MHz, 915 MHz, or 2.4 GHz frequencies, the Mini Lever makes it easy for your equipment to enter multiple markets without requiring extensive redesigns.

Options for Mini Lever

Our models are modular. Explore the available configurations, actuators, and additional options.

Scanreco Mini Lever 4.3 premium display__

Display

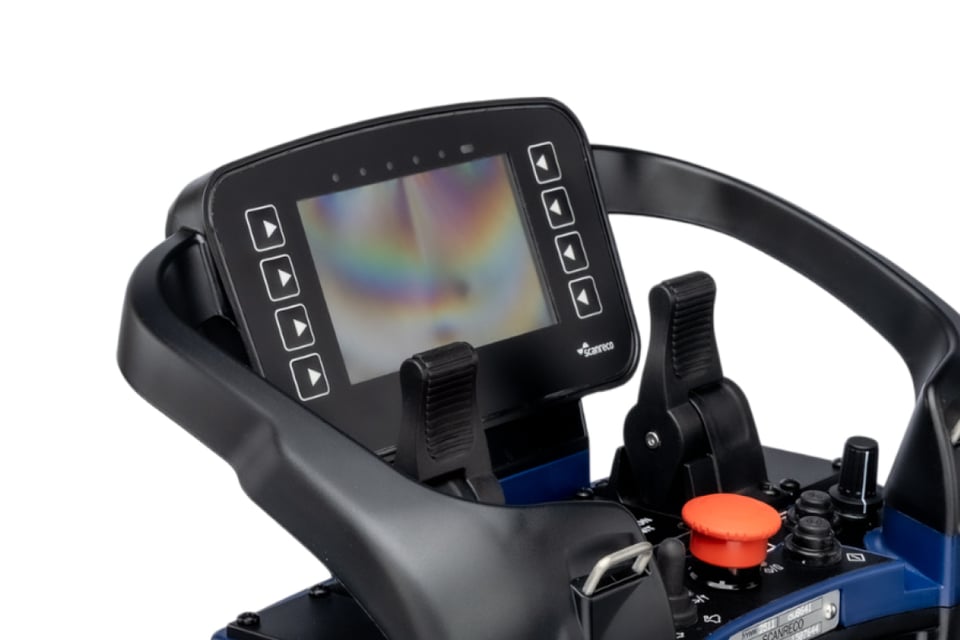

4.3" Premium Display

Combines the power of the 4.3" Standard display with integrated Wi-Fi, real-time sensors (gyroscope, accelerometer), bonded glass, and high sunlight readability—ideal for advanced workflows. The optional Wi-Fi camera function provides real-time visual feedback directly on the remote, boosting operator confidence.

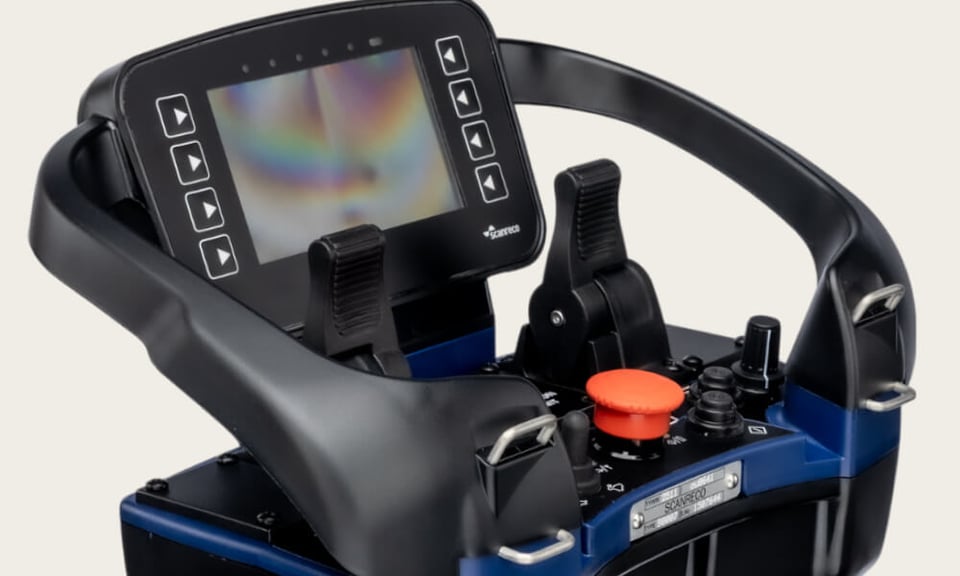

Scanreco Mini Lever 4.3 Standard display_

Display

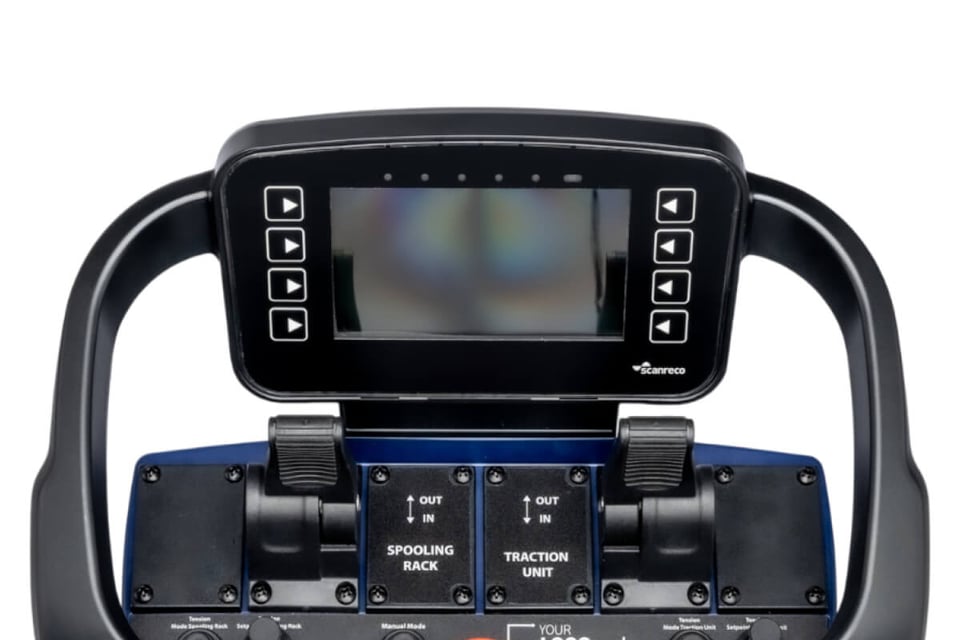

4.3" Standard display

A powerful color display (16 million colors) with 8 GB storage, programmable via Qt. The 8 side buttons can run display logic or operate added digital outputs, giving OEMs the freedom to build robust, interactive HMIs.
Scanreco Mini Lever 2.4 Monochrome display_

Display

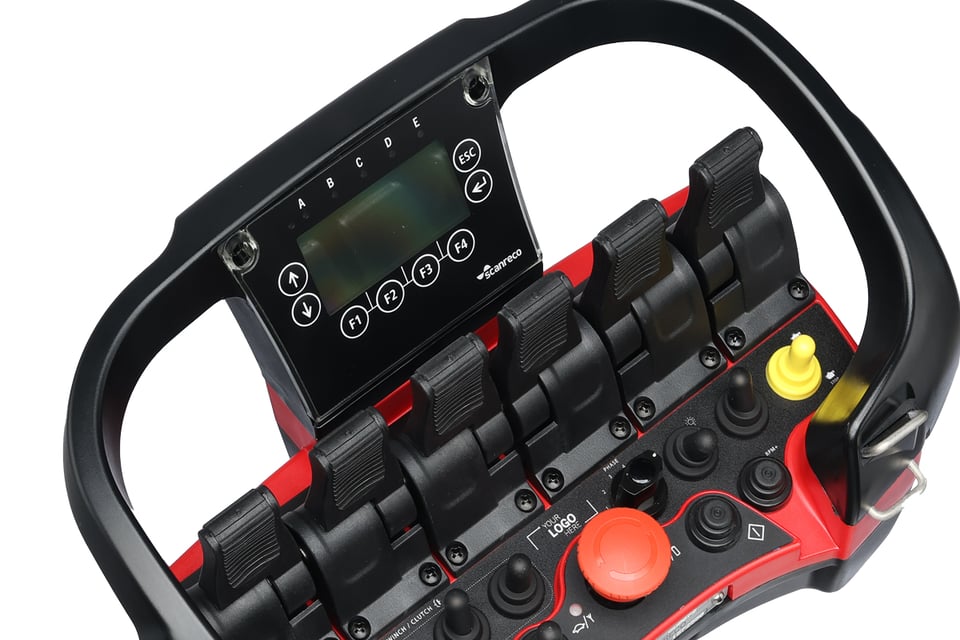

2.4" Monochrome display

A compact, backlit LCD providing essential machine data at a glance. Optional integrated push buttons can handle logic, additional digital inputs, or quick mode selections, making your remote even more versatile.
Scanreco Mini Lever LED indicators display_

Display

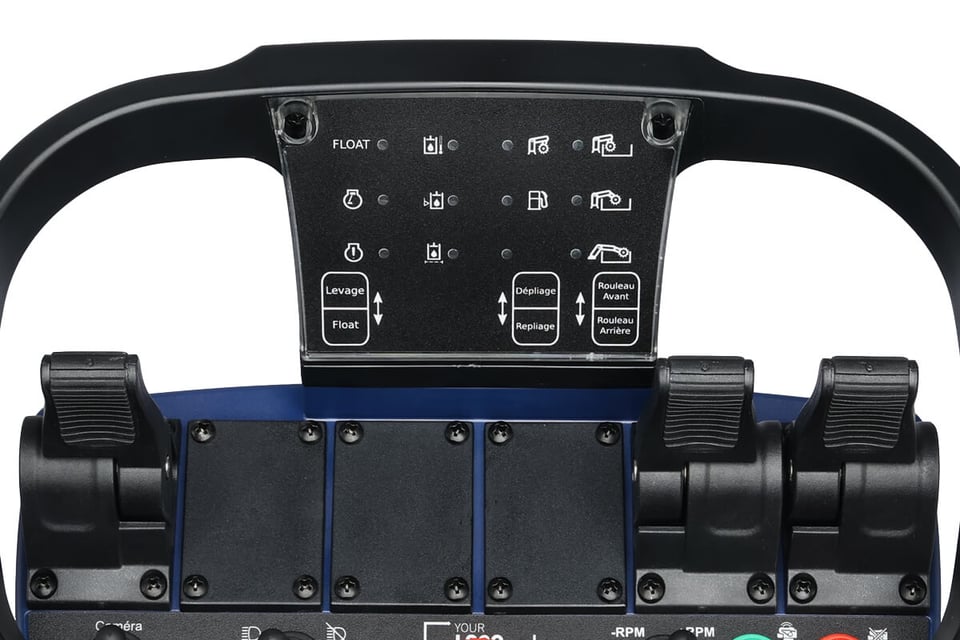

LED indicators

Choose from 1 up to 15 LEDs, each configurable with several colors and labeling, so operators instantly recognize machine states, warnings, or progress.
Options for_Mini Lever_No display

Display

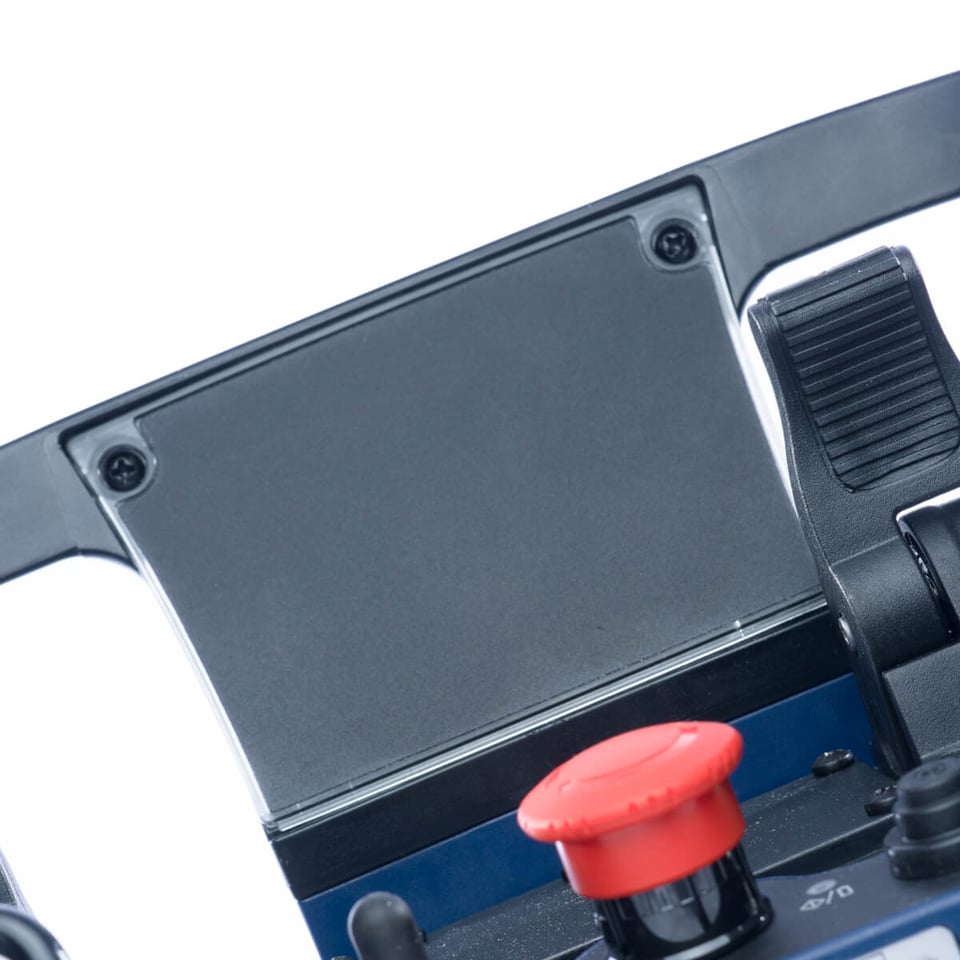

No display

A simple black cover plate designed for minimalistic setups. Personalize it with logos or symbols to support your brand identity or operational clarity.

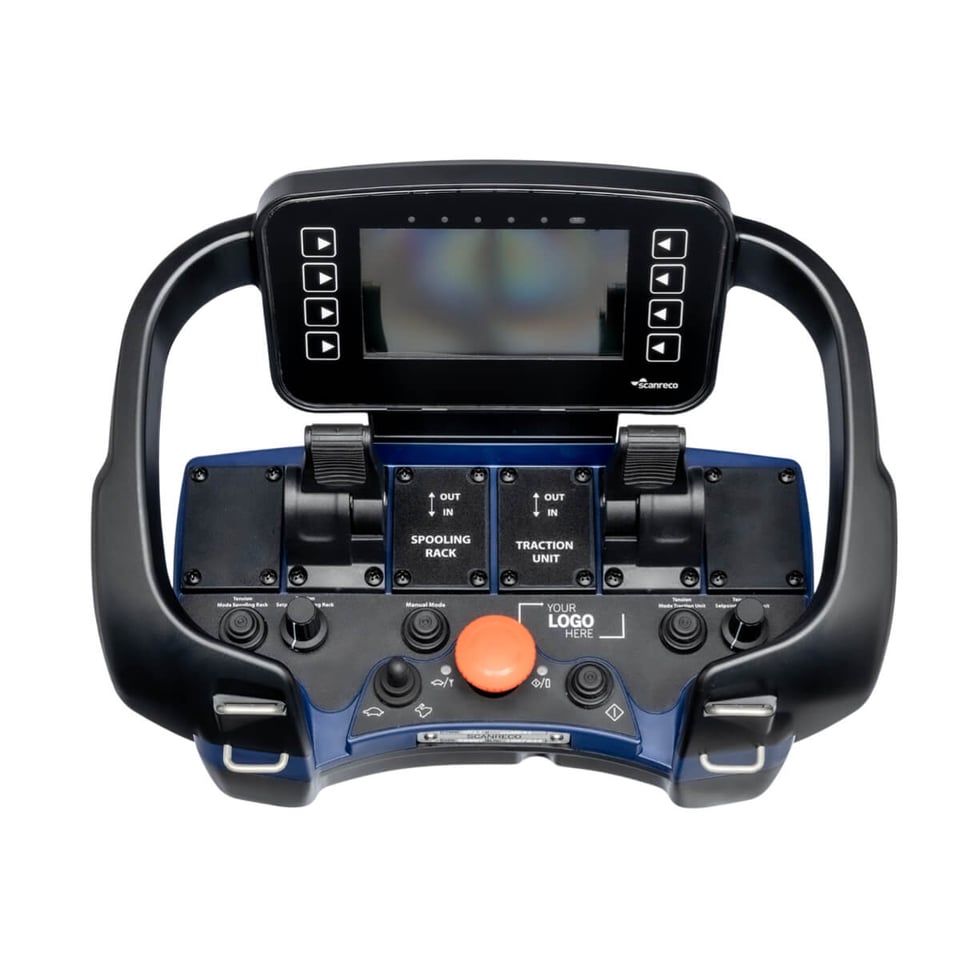

Scanreco_Blue top section color Mini Lever

Top section color

Blue

Our iconic “Scanreco blue,” recognized worldwide as a mark of reliability and performance.

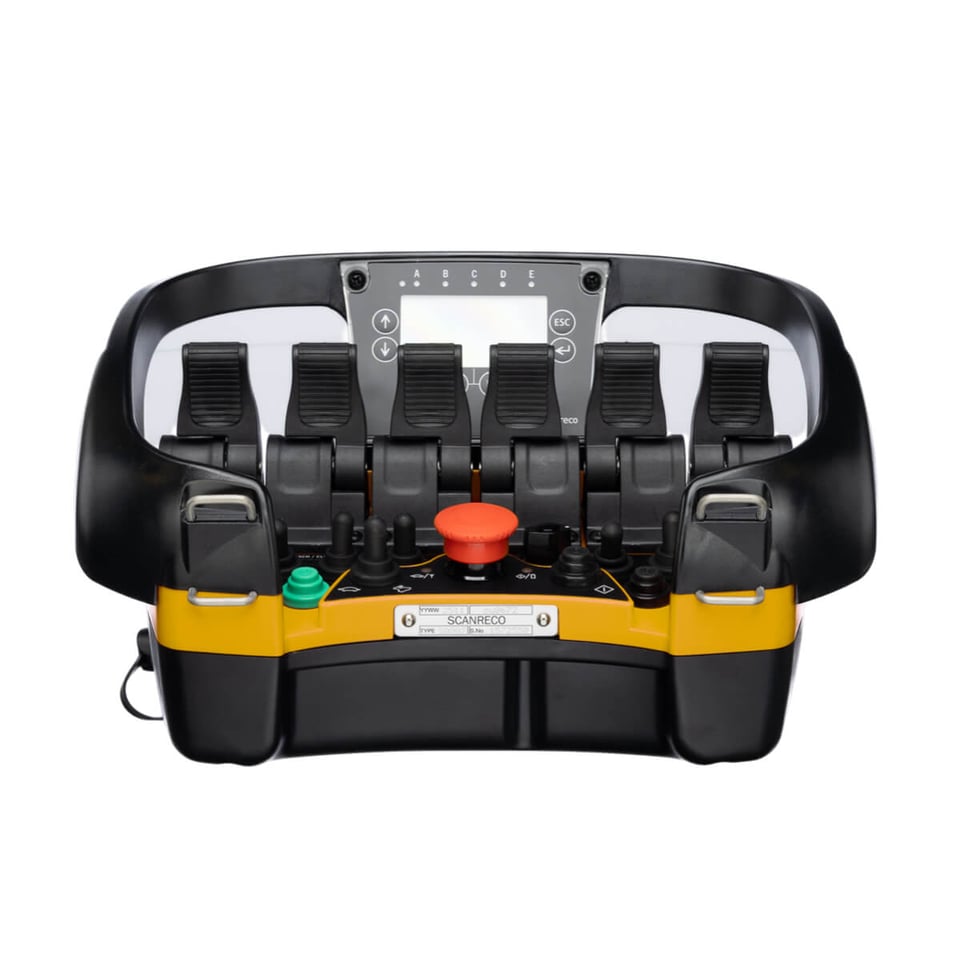

Scanreco_yellow top section color Mini Lever

Top section color

Yellow

Eye-catching and good fit for high-alert or safety-oriented machines, and for ensuring immediate visibility on a busy worksite.

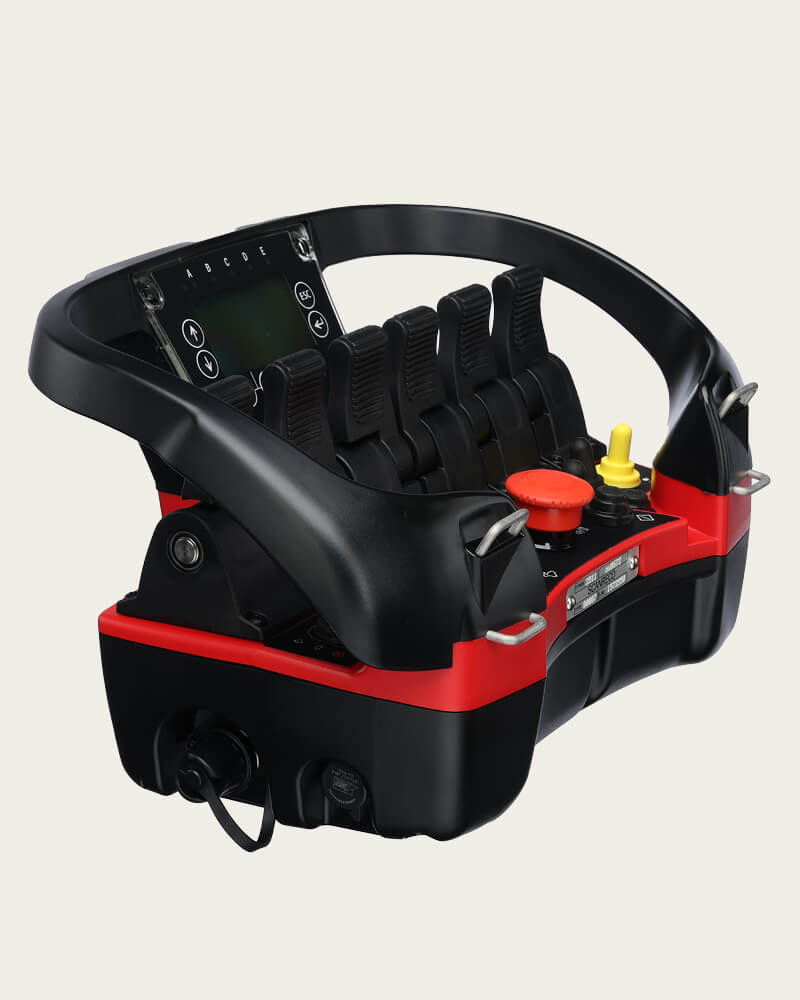

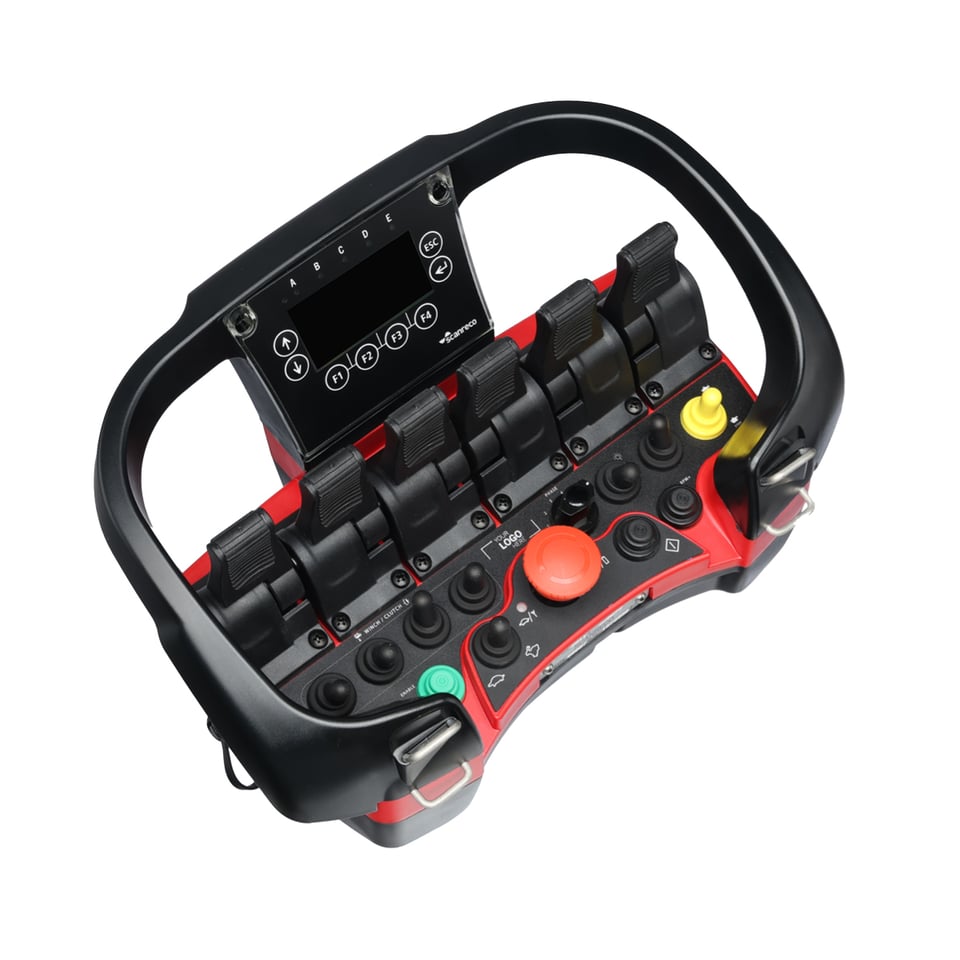

Scanreco_Red top section color Mini Lever

Top section color

Red

Bold and dynamic, often used to emphasize critical operations or align with brand colors.

Radio module

433 MHz

Radio tranciever module for transmitter with European frequency (433.050 – 434.775 MHz).

Radio module

915 MHz

Radio tranciever module for transmitter with North American frequency (915,0 – 919,9 MHz).

Radio module

2,4 GHz

Radio tranciever module for transmitter with globally accepted frequency (2.4 GHz).

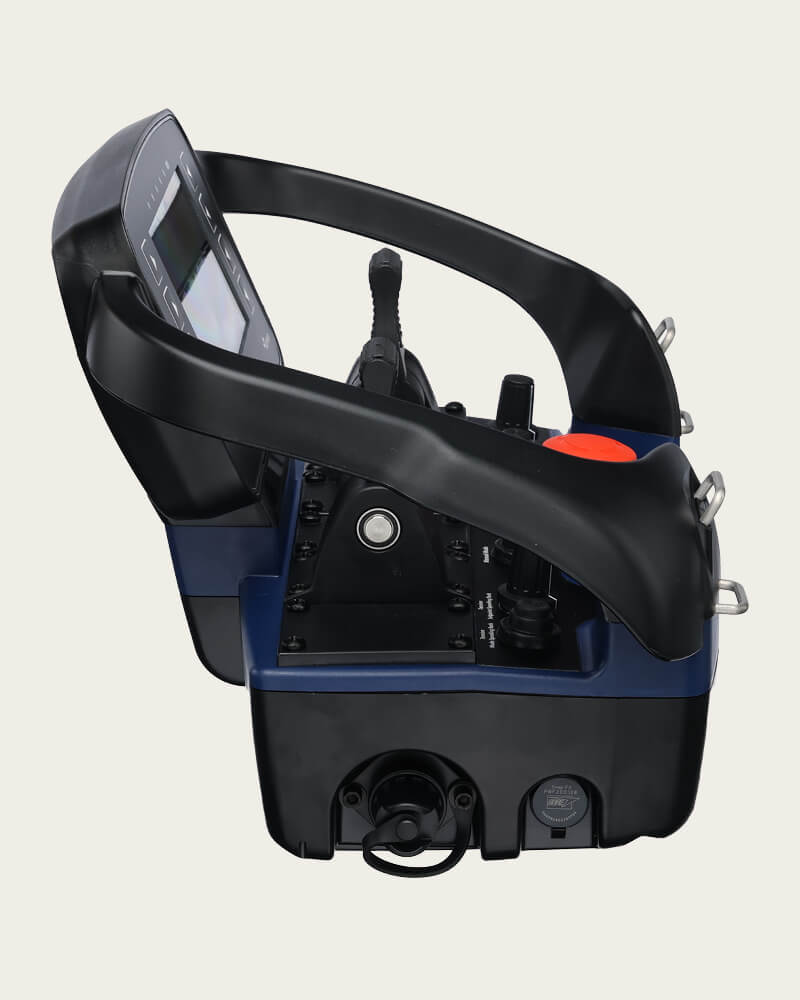

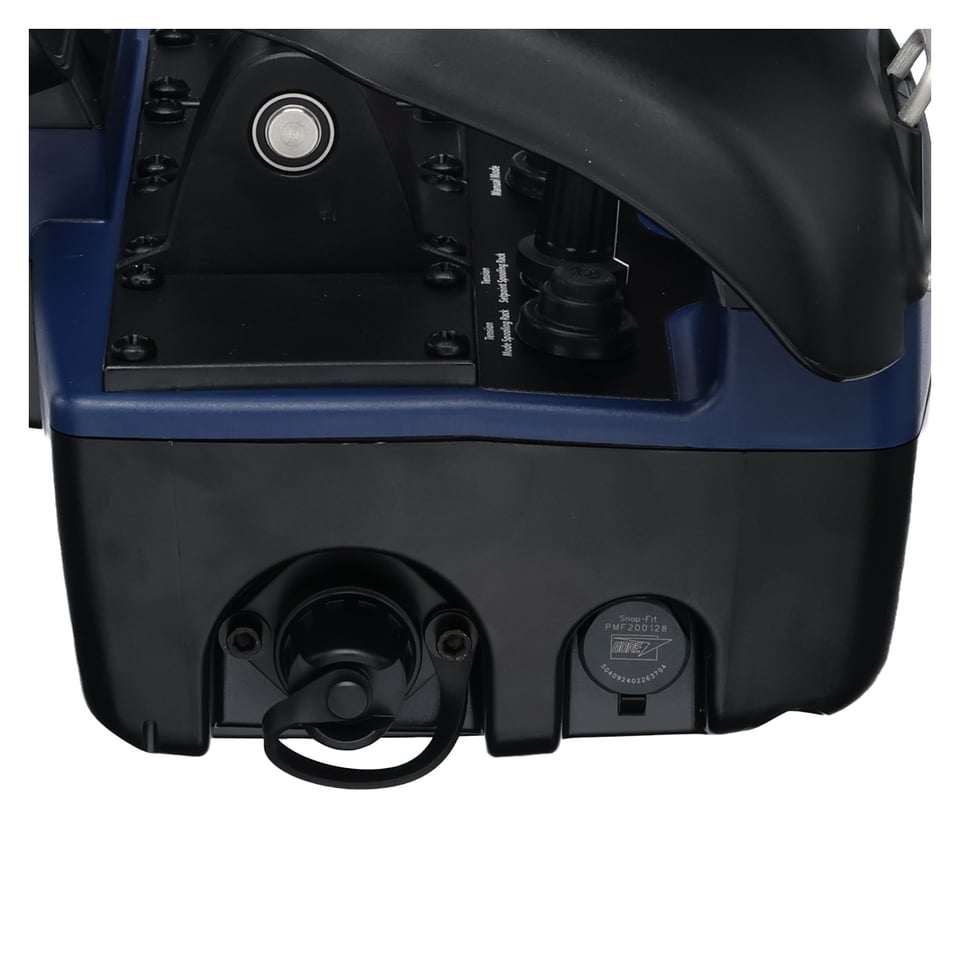

Scanreco_G2 G3 Tether cable control

Tether/Cable control

Available as standard

For environments where wireless isn’t feasible or battery concerns arise, a tethered option ensures uninterrupted operation. We have you covered with 10 or 30m lengths —helping you maintain control even in RF-limited zones or in case of battery depletion.
Scanreco_G2 Battery High-capacity Li-ion

Battery

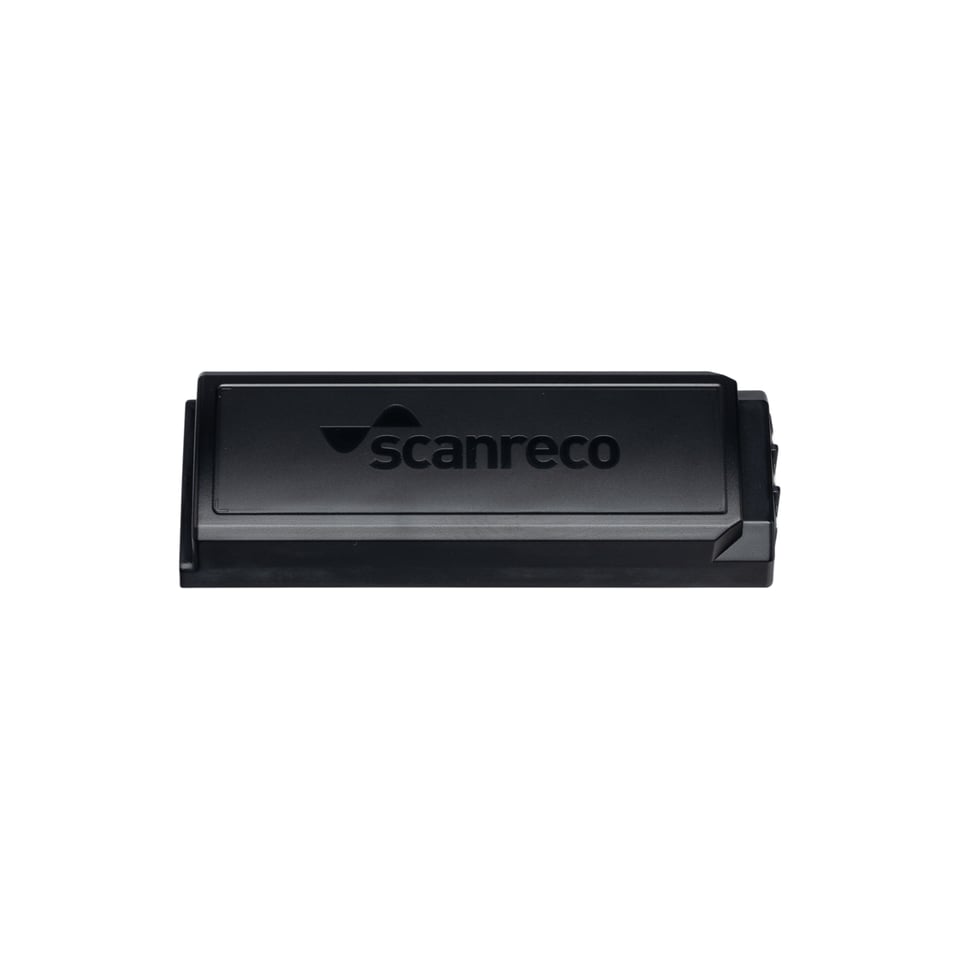

G2 Li-Ion High-capacity battery

With 5800mAh of power, the black G2 Li-ion battery is designed to support transmitters equipped with color displays or those requiring prolonged operational cycles. Its lithium-ion chemistry provides dependable power delivery, and a longer overall lifespan with more charging cycles.

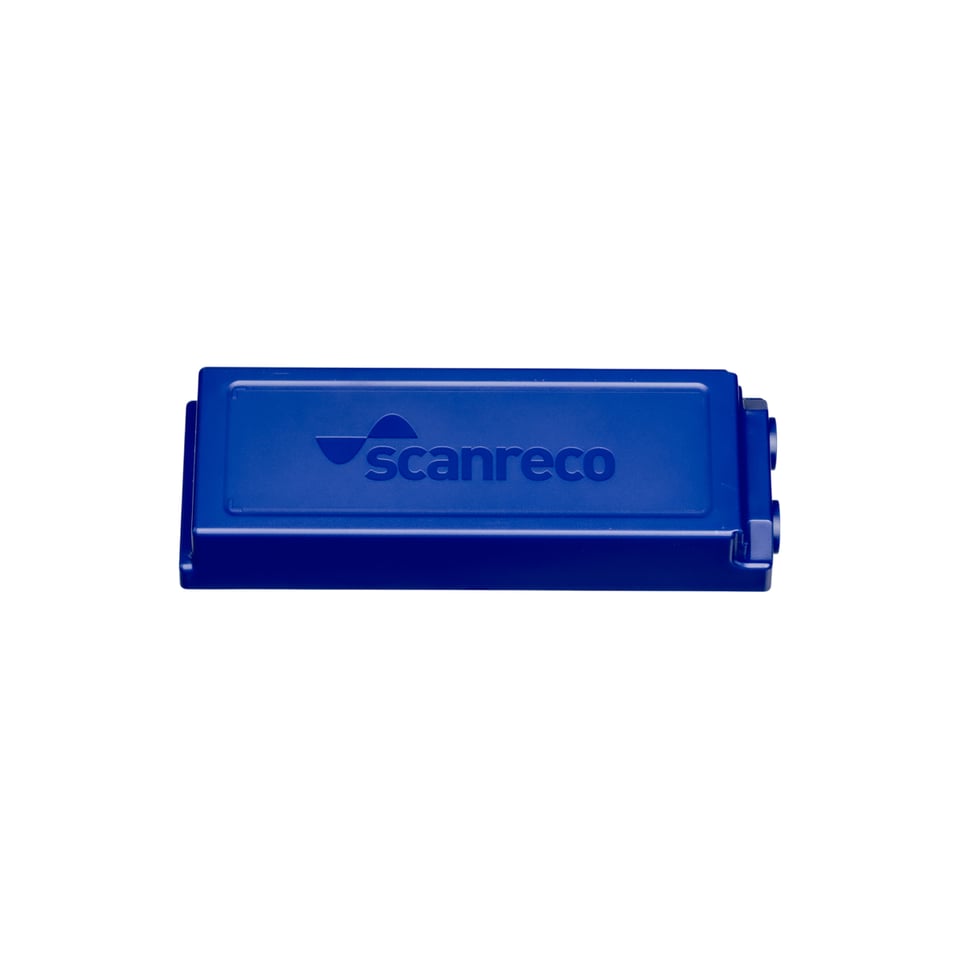

Scanreco_G2 Battery High-capacity NiMH

Battery

G2 NiMH High-capacity battery

Delivering 3000mAh of power, the blue G2 High-Capacity NiMH battery extends operational time for transmitters that require more energy. Manufactured to strict quality standards, this battery ensures consistent performance in various operating environments.
Scanreco_G2 Battery Standard NiMH

Battery

G2 NiMH Standard capacity

The G2 Standard NiMH battery offers 2000mAh of reliable power, making it a perfect choice for transmitters with lower energy demands—especially those without displays or with shorter duty cycles.
Scancreco_Standard Lever Black

Lever

Standard lever black

Powered by Hall sensors to avoid wear and tear over time. This lever offers crisp feedback and superior longevity in demanding applications.
Scancreco_Standard Lever Red

Lever

Standard lever red

Same Hall-effect reliability as the black lever, but with a red grip for distinguishing critical or specialized functions. Ideal for visually separating key machine tasks.
Scancreco Push buttons Buttons

Buttons

Push buttons

No matter if you have 1 or 10 digital functions  to control, feel free to select your preferred configuration: black, green, yellow or red. Our push buttons always deliver a comfortable press feel and are made to last.
Scancreco_toggle switch_latching

Toggle switches

Latching function

A 2- or 3-position detent toggle switch for continuous activation. Available with 2 or 3 positions and with black, yellow, red, green or grey rubber cover.
Scancreco_toggle switch_momentary

Toggle switches

Momentary function

Our spring return toggle switch —operators hold it in place while needed, available with 2 or 3 positions and with black, yellow, red, green or grey protection.
Scancreco_toggle switch_lift to switch

Toggle switches

Lift to switch function

Prevent any possible unwanted activation of critical on-off functions, with this pull-to-switch actuator.
Scancreco_Potentiometer_Uni

Potentiometer

Uni-directional

Easily manage speed, flow and other outputs, with this compact potentiometer. From zero to maximum.
Scancreco_Potentiometer_Bi

Potentiometer

Bi-directional

A comfortable and compact knob for accurate and precise regulation of a bidirectional outputs.
Scancreco_Rotary switches

Switches

Rotary Switches

A go-to for selecting operational modes, speed levels, or function groups—streamlined and robust for everyday usage. The rotary switch is available with either 3, 4 or 6 positions.
Scanreco_waist belt Maxi and Mini Joy-Lev_carrying accessory

Carrying accessory

Waist belt

Built for even weight distribution across the hips, this belt relieves strain on the operator’s back. Ideal for long shifts or tasks requiring constant movement, it helps keep the remote stable while causing less fatigue in demanding environments.
Scanreco_Shoulder hook_carrying accessory

Carrying accessory

Shoulder hook

Put your transmitter on and off in a matter of seconds with this ergonomic solution, specifically designed to optimally distribute the load and guarantee maximum comfort during working operations.
Scanreco_slide belt_carrying accessory

Carrying accessory

Slide belt

Engineered for adaptability, this belt lets you effortlessly rotate or slide the transmitter around your waist. It’s perfect for quickly shifting the remote to a more convenient position.
Scanreco_Shoulder vest_carrying accessory

Carrying accessory

Shoulder vest

This special harness allows to reduce the stress on your body during long working days: the weight of the transmitter unit is evenly distributed over the shoulders and the straps are adjustable for a perfect fit.
Scanreco_Shoulder strap_carrying accessory

Carrying accessory

Shoulder strap

Two sturdy clips anchor the transmitter for secure carrying. The length is easily adjustable, ensuring operators of different body types can keep the remote at the perfect height and orientation.
Scanreco_camera solution

Camera solution

Live-stream Wi-Fi camera solution

Never miss a thing with our live-stream Wi-Fi camera solution. Designed for remote controls with premium displays, this rugged, high-quality camera delivers low-latency video right to your transmitter, giving you easy access to blind spots, challenging angles, or multiple views.

Compatible with these receivers

  • PL d
  • IP67
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Receivers

G3 CAN

Minimalistic CAN receiver with hardwired safety loops

Read more

Scanreco as a partner

A simple process

Consultation-support-Scanreco

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.
Configuration_scanreco_system_cropped

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.
receiver on machine

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.
Scanreco-aftersales-support

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about Mini Lever

Technical information
  • Protection category: IP65
  • Stop function: in accordance with EN ISO 13849-1 cat. 3, PL d
  • Frequency bands: 433, 915MHz, or 2.4GHz (other frequencies available on request)
  • Operating range: > 100m / > ~330 ft.
  • Cable control: Standard Length 10 meters / ~33 ft.
  • Operational temperature: -20°C to +70°C / ~-4°F to +158°F
  • Dimensions: (W x H x D): 290 x 160 x 190 mm / ~11.42 x 6.30 x 7.48 in (w/o color display)
  • Weight: 1.4–2.2 kg / ~3.1–4.8 lbs. including battery
  • Levers: 1-6 linear levers
  • Additional actuators: Various toggle switches, pushbuttons, and rotary switches
  • Operator feedback by:
    LEDs (light-emitting diodes)
    Monochrome display 2.4” with 128 x64 px
    Color display 4.3” with 480 x 272 px
