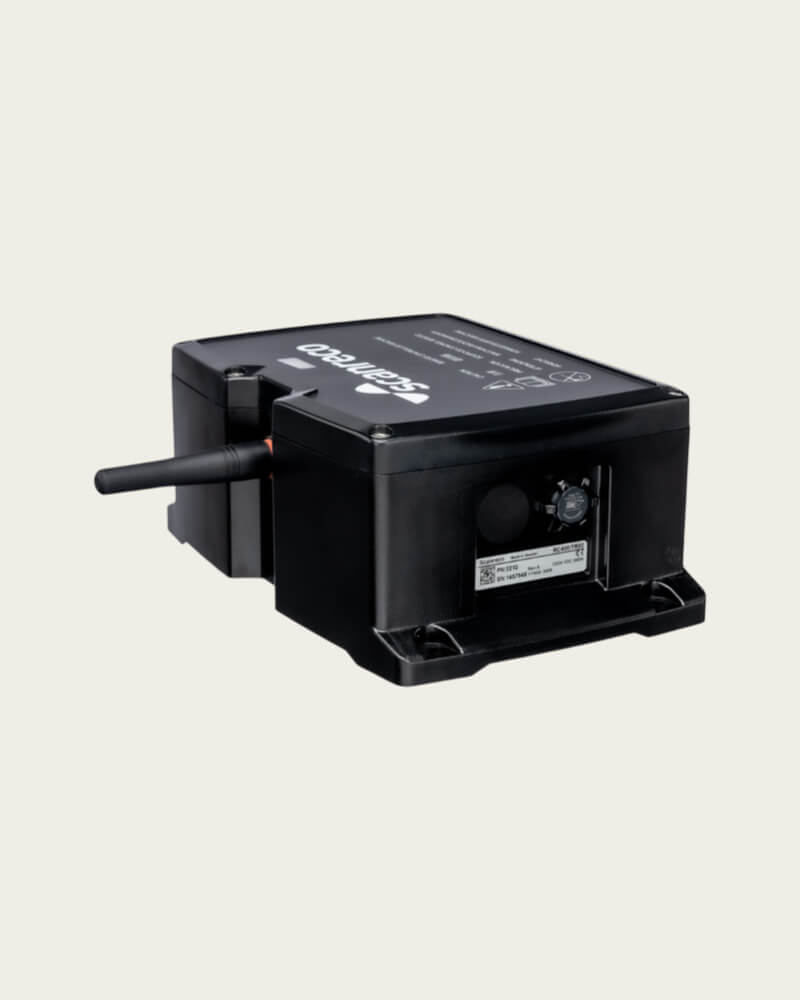

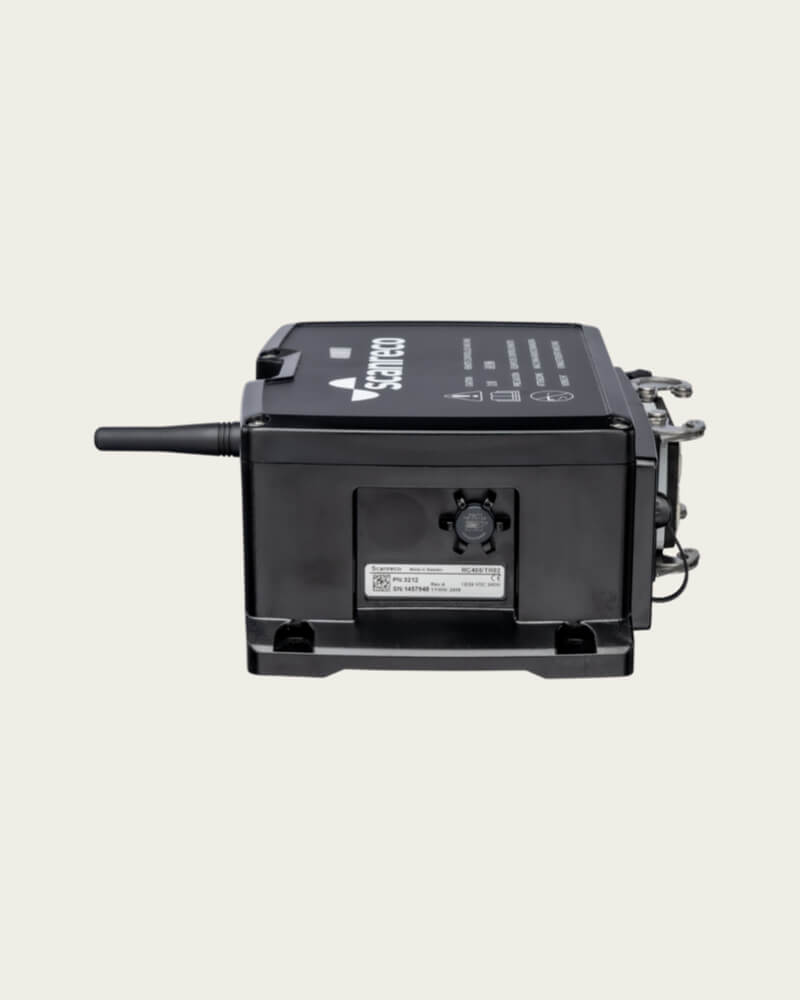

G2 PWM Extended

Pulse-width modulation with expanded output options

When you need a receiver that not only handles pulse-width modulation (PWM) but also offers extra outputs, choose the G2 PWM Extended. Supporting the same robust parameter register and program block functions as the standard G2 PWM, it goes a step further by providing optional 0–10VDC output or two functional safety relays (PLd) for more specialized applications. Designed with a fully potted enclosure for improved durability, the G2 PWM Extended is ideal for controlling mobile hydraulics from a variety of manufacturers—delivering the precision and reliability your equipment demands.

image - 2025-03-14T100411.420

Reliability

Durability at its core

A fully potted design protects internal components from harsh conditions, enabling sustained performance and a longer service life.
image - 2025-03-14T100411.420

functional safety

Performance level PL d

Compliant with PL d (ISO 13849), the G2 PWM Extended enhances operational safety and aligns with modern regulatory requirements.
image - 2025-03-14T100411.420

Adaptable settings

Fine-tuned calibration

Adjust curve linearity, deceleration, or block functions via a built-in configuration register. This flexibility allows you to calibrate performance to your exact needs.

Receiver

Why choose G2 PWM Extended?

The G2 PWM Extended bridges the gap between standard proportional receivers and the additional outputs high-end machines often demand. Whether you’re looking for a 0-10VDC output or 2 additional safety relays, this receiver expands your capabilities without compromising on build quality, safety, or reliability.

Additional outputs

Ideal for demanding tasks like concrete pump operations or any scenario where extra safety relays are required—enhancing application-specific control.

CANopen compatibility

Seamlessly integrates with diverse controllers, simplifying communication and ensuring broad manufacturer support.

Reliable under any conditions

Engineered to operate under tough conditions, minimizing downtime and maintenance even with constant usage.

Global market ready

Compatible across 433 MHz, 915 MHz, or 2.4 GHz frequencies, allowing your machines to reach international markets without extra complications.

Explore more

Options for G2 PWM Extended

Receiver

G2 PWM +0–10 VDC output

This G2 variant features eight PWM outputs (16 paired), one 0–10VDC output, 13 digital outputs, 4 digital inputs, a dedicated dump valve output, as well as a CANopen interface, and an IP65-rated enclosure. Connect via ILME connector or cable gland. Commonly used in concrete pumping systems.

  • Functional safety: PL d (ISO 13849-1)
  •  Ingress protection: IP65

Receiver

G2 PWM +2 safety relays

Two PLd-rated safety relays integrate seamlessly into existing circuits, alongside a dedicated dump valve (DV) output. Also provides 8 PWM outputs, 14 digital outputs, 4 digital inputs, and CANopen connectivity.

  • Functional safety: PL d (ISO 13849-1)
  •  Ingress protection: IP65

Compatible with these transmitters

  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Mini Joystick

Medium-sized bellypack featuring joystick-based control with up to 3 joysticks

Read more
  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Mini Lever

Medium-sized bellypack featuring lever-based control with up to 6 levers

Read more
  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Maxi Lever

Larger bellypack transmitter with up to 8 levers and an ergonomic wrist bar

Read more
  • PL d
  • IP65
  • 2.4 GHz

Transmitters

Rocket

Compact handheld with step-buttons, optional display

Read more

Scanreco as a partner

A simple process

Consultation-support-Scanreco

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.
Configuration_scanreco_system_cropped

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.
receiver on machine

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.
Scanreco-aftersales-support

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about G2 PWM Extended

Technical information
  • Platform: G2

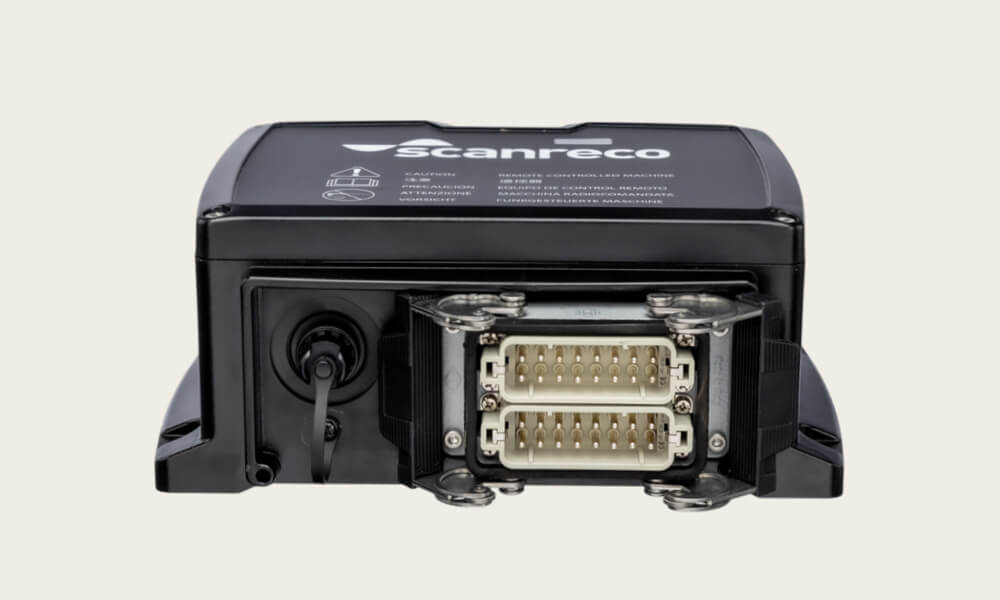

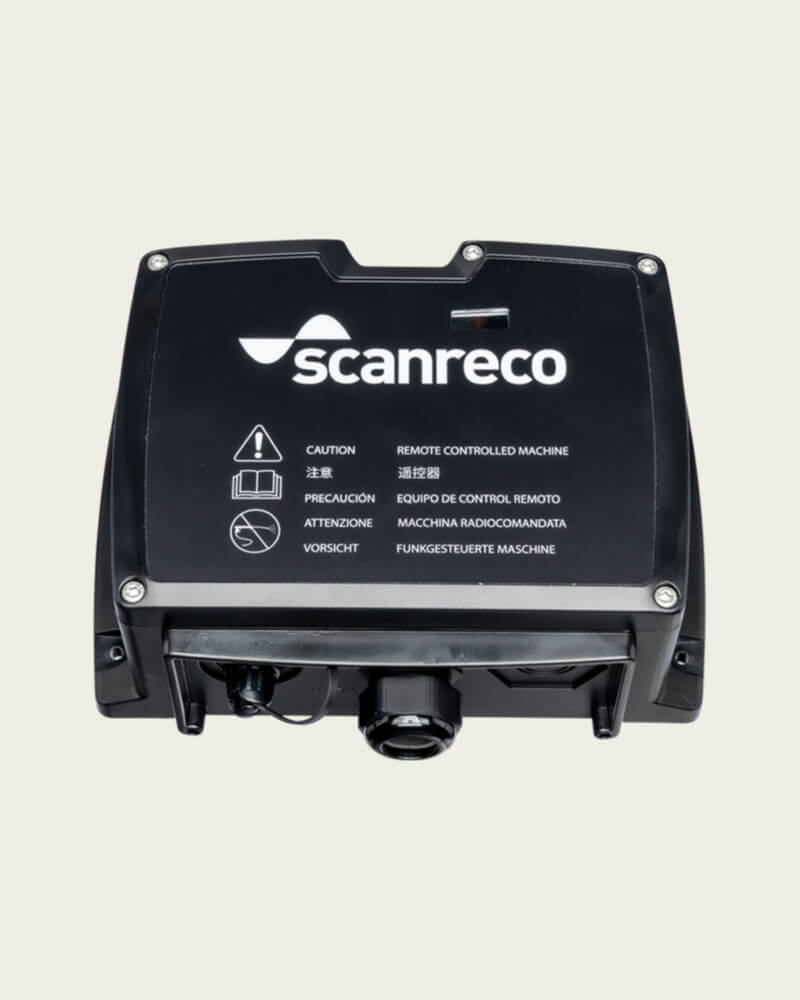

  • Receiver type: G2 with M32 Cable Gland or 32-pin ILME connection
  • Dimensions: (WxHxD)
  • G2 Extended Receiver with M32 Cable Gland:
    257 x 273 x 100 mm / 10.1 x 10.7 x 3.9 inches
  • G2 Extended Receiver with 32-pin ILME connection:
  • 257 x 283 x 100 mm / 10.1 x 11.1 x 3.9 inches
  • Weight: 2 kg / 4.4 lbs
  • Power supply: 12 or 24 VDC
  • IP-class: IP65
  • Fuse Internal: 10 Ampere
  • Overload protection: Yes, maximum 33 VDC (Fuse blows)
  • Current consumption: 40 mA (idle)
  • Analog outputs: 8 bi-directional PWM outputs (totally 16 outputs interlocked/paired)
  • Programmable output: current range 100 – 2000 mA
  • Programmable dither frequency
  • Short circuit proof, overload protected, max 2 Ampere load
  • Digital outputs: 14 digital outputs available (where 1 is combined input/output)
  • Short circuit proof, overload protected, max. 1.8 Ampere load/output
  • Digital inputs: 4 digital inputs available (where 1 is combined input/output)
  • Dump valve output: Short circuit proof, overload protected, max. 2 Ampere load. Active while radio/cable link is established (transmitter is on). Safety classified according to ISO 13849-1 cat. 3, PL d.
  • For G2 PWM Extended 0-10 VDC: 1 0-10 VDC output
  • For G2 PWM Extended Safety relays: 2 safety relays, active while radio/cable link is established (transmitter is on). Max 8 A load. Relay 1 and 2 must be connected in series to comply with ISO 13849-1 PL d.
  • CAN Bus: CANopen
  • Radio frequencies: 433 MHz, 915 MHz or 2.4 GHz
  • Ambient temperature: -25°C to +70°C /~ -15°F to +160°F
