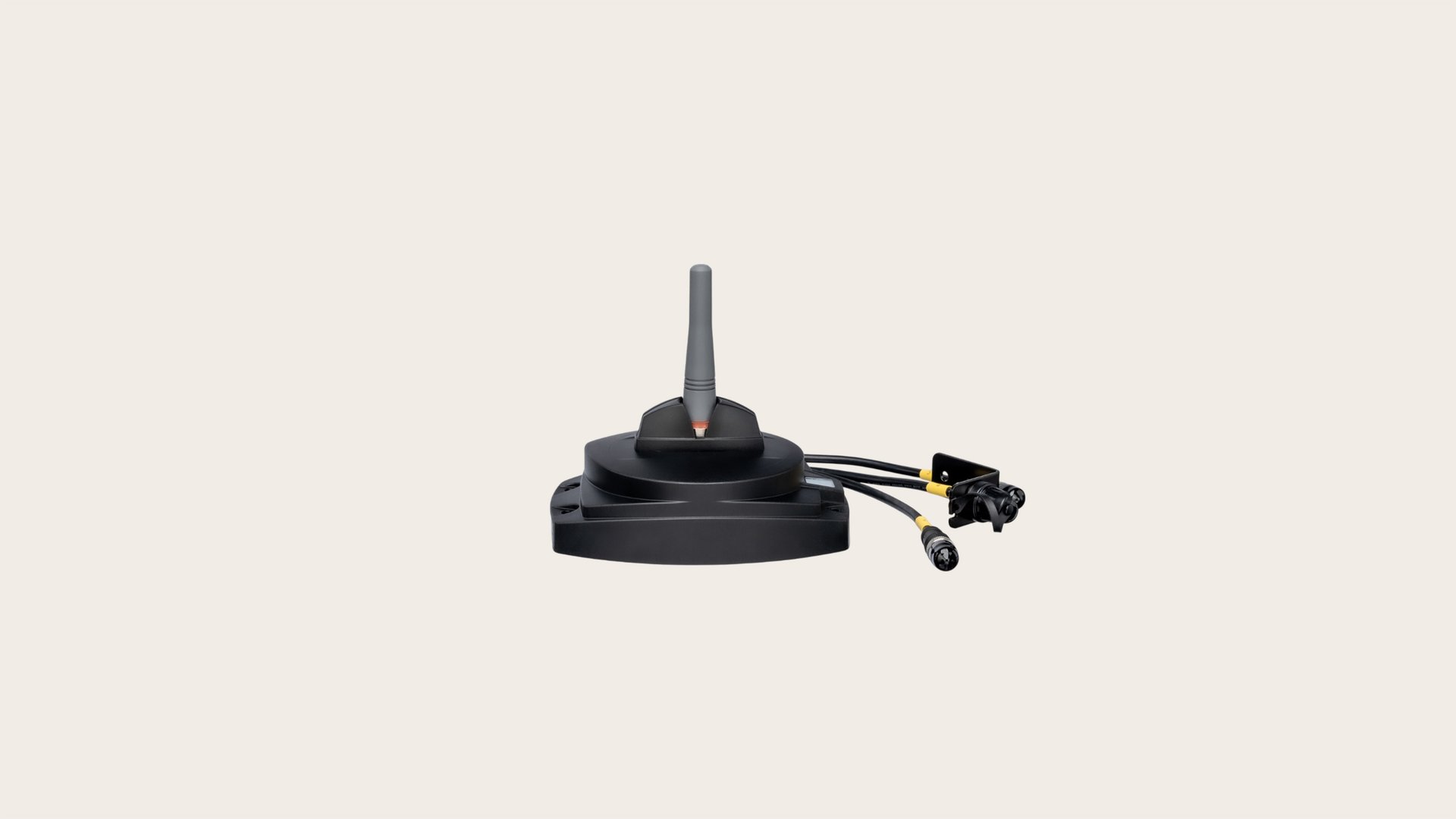

Website hero Scanreco G3 CAN grey

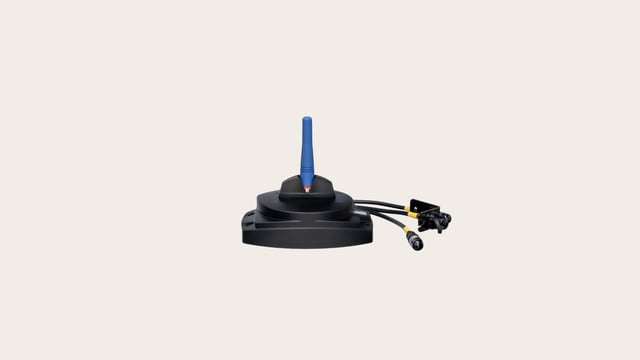

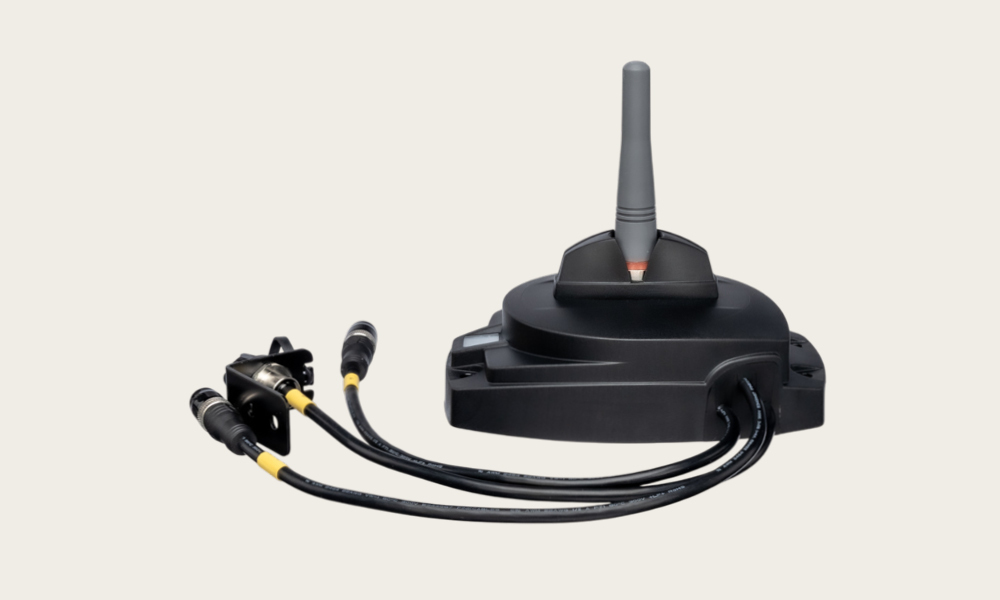

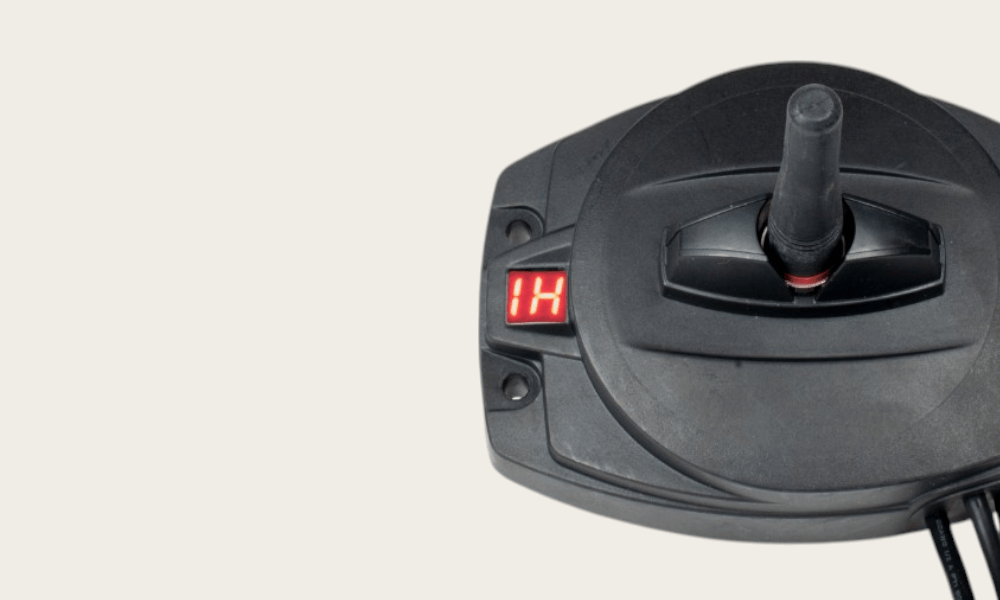

G3 CAN

Dedicated CAN receiver for machines with controllers

The G3 CAN receiver is designed for machines that already feature a master controller, emphasizing a single, reliable CAN interface. Out of the box, it supports CANopen and provides hardwired signals for a seamless stop function. For OEMs seeking a straightforward path to remote control—without additional I/O overhead—the G3 CAN merges safety loops with a simple setup, delivering stable performance in both standard and demanding applications. By eliminating unnecessary I/O complexity, you can focus on refining your machine’s core functionality while maintaining a rigorous safety standard.

image - 2025-03-14T100411.420

Purpose-built

Straight-to-CAN simplicity

With native CANopen support, the G3 CAN easily integrates into your machine’s existing network, removing the need for extra wiring. This streamlined communication helps minimize installation time and reduce potential failure points, allowing your master controller to concentrate on its core tasks.
image - 2025-03-14T100411.420

Reliable

Safety-first architecture

G3 CAN has multiple safety classified outputs with slight different functionality and features. Dual safety-loops makes it easy to integrate with safety loops on the machine. Dual dump valve outputs, DV1 which is active when any of the levers/joysticks are active, and DV2 which is active when radio/cable link is active. These versatile built-in safeguards guarantee no unintended movements from stand-still and instant machine stop in case of lost radio link or engaged stop
image - 2025-03-14T100411.420

Perfect fit

Flexibility in supply & control

Operate on 12 or 24 VDC, choose between radio or cable-based control, and leverage robust frequency-hopping in the ISM band for interference-resistant operations. This versatility allows the G3 CAN to adapt to a range of system designs and environments, making it a cost-effective solution for diverse OEM requirements.

Receiver

Why choose G3 CAN?

When your machine’s “brain” is already in place, the G3 CAN receiver delivers exactly what you need—solid integration and essential safety. Whether it’s pairing with Maxi-, Mini Joystick or Lever, or Rocket transmitters, this streamlined approach offers a focused solution for OEMs who want minimal complexity without sacrificing reliability.

Reduced complexity

Skip excessive I/O in favor of a direct CAN interface, letting your master controller take the lead.

Safety loops

Hardwired stop signals and dual safety loops help maintain safety for both operators and machines in critical conditions.

Time-saving installation

Clearly labeled terminals and versatile supply voltages shorten your deployment timeline, so you can get up and running faster.

Global market access

Supports global market access across 433 MHz, 915 MHz, and 2.4 GHz frequencies, ensuring dependable connectivity for various regional requirements.

Compatible with these transmitters

  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Mini Joystick

Medium-sized bellypack featuring joystick-based control with up to 3 joysticks

Read more
  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Mini Lever

Medium-sized bellypack featuring lever-based control with up to 6 levers

Read more
  • PL d
  • IP65
  • 433 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Maxi Lever

Larger bellypack transmitter with up to 8 levers and an ergonomic wrist bar

Read more
  • PL d
  • IP65
  • 2.4 GHz

Transmitters

Rocket

Compact handheld with step-buttons, optional display

Read more

Scanreco as a partner

A simple process

Consultation-support-Scanreco

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.
Configuration_scanreco_system_cropped

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.
receiver on machine

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.
Scanreco-aftersales-support

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about G3 CAN

Technical information
  • Platform: G3
  • Dimensions: (W × H × D): 110 × 140 × 157 mm (~4.33 × 5.51 × 6.18 in, including antenna)
  • Weight: 1.2 kg (2.6 lbs)
  • Power Supply: 12 or 24 VDC (absolute maximum ratings 9–36 VDC)
  • IP Class: IP67

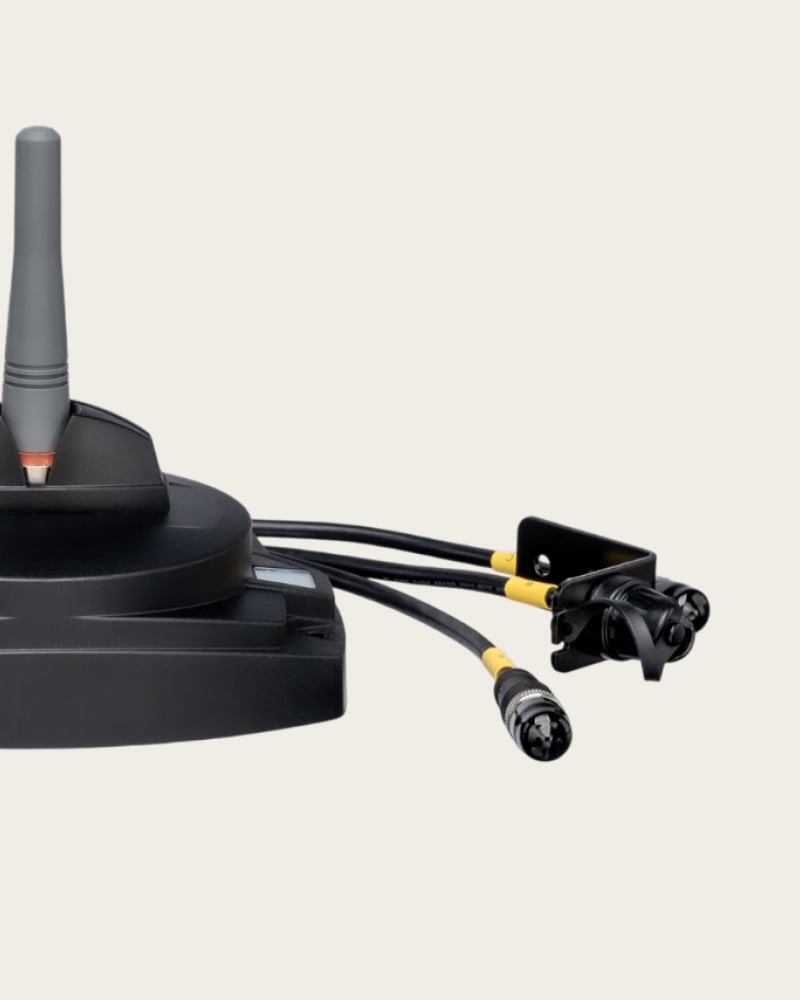

  • Cable Interface: M12 connectors
  • Cable Length: 0.3 m or 3.0 m (0.98 ft or 9.84 ft)
  • Current Consumption:
    Idle: 65 mA (at 24 V)
    Operational: 100 mA + external loads in operation (at 24 V)
  • Dump Valve Outputs: Short-circuit-proof, overload-protected, max. 2.7 A load.
    DV1 is active when any of the levers/joysticks are active.
    DV2 is active when the radio/cable link is active.
  • Safety Loops: Feed Loop-In with power supply. Once the radio/cable link is established, Loop-Out goes high. Short-circuit-proof, max. 2.7 A load.
  • CAN Bus: CANopen
  • Radio frequencies: 433 MHz, 915 MHz & 2.4 GHz
  • Ambient Temperature: –25 °C to +70 °C (–13 °F to +158 °F)
