Perfect fit

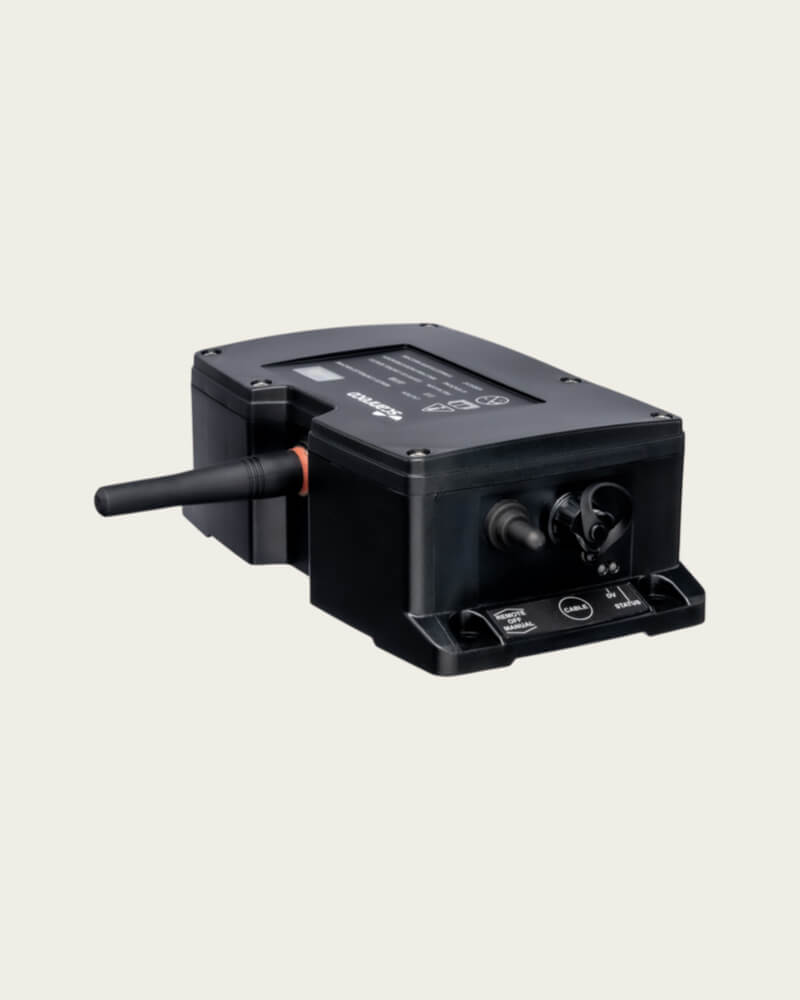

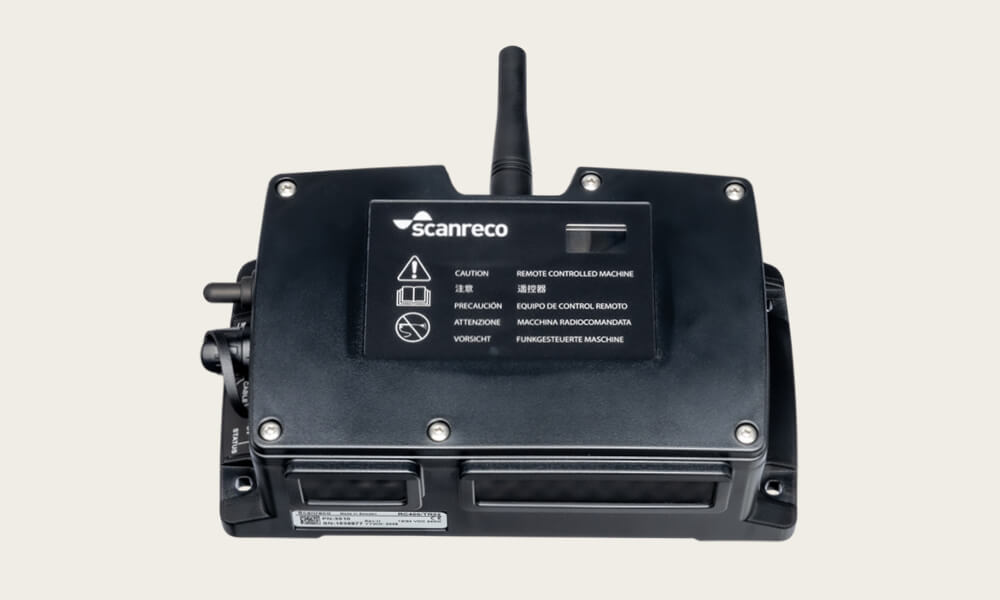

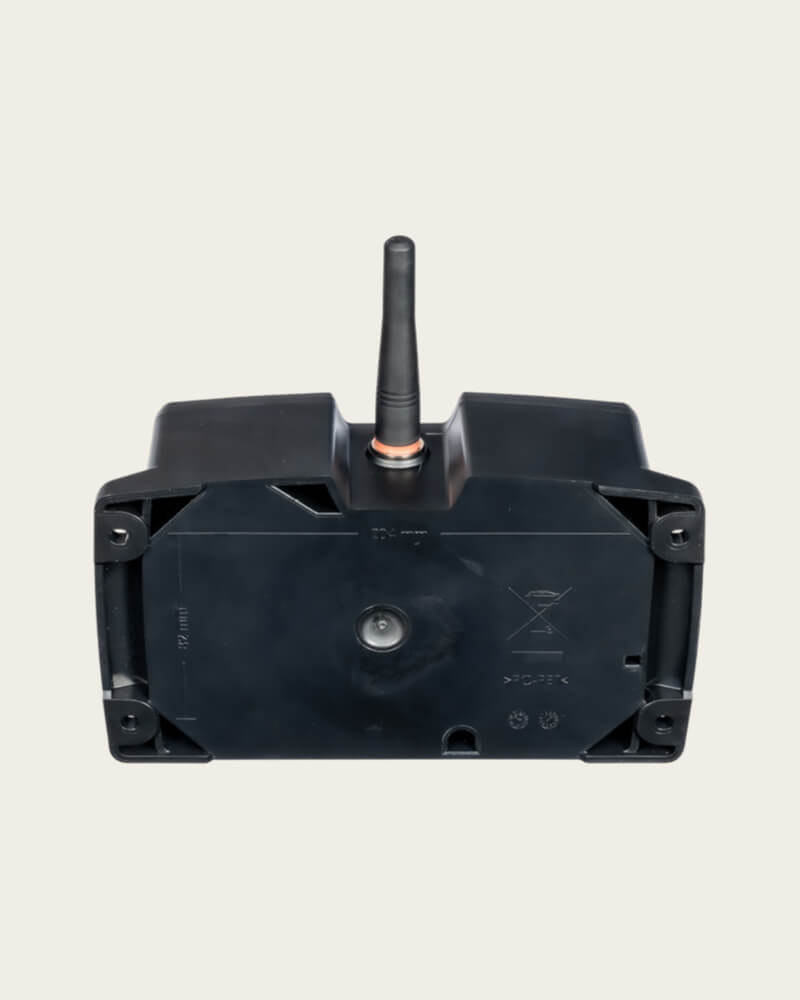

G4 PWM
- PL d
- IP65
Proportional control tailored for Handy transmitter
The G4 PWM receiver delivers the same proven durability and functionality as our G2 lineup—but with fewer outputs, making it the perfect match for Handy transmitters. If you’re looking for a cost-effective, reliable solution for simpler operations, G4 PWM offers proportional outputs and digital outputs/inputs as well as a CANopen interface in a rugged, easy-to-integrate package.
valve control
Proportional outputs
fast deployment
Flexible calibration
Receiver
Why choose G4 PWM
For OEMs needing a simpler but no less robust proportional solution, the G4 PWM receiver balances reliability, affordability, and convenience. By focusing on essential proportional outputs, CANopen and Handy transmitter compatibility, it reduces hardware overhead while maintaining the safety and performance standards you expect from Scanreco.
Compact functionality
Proven technology
Functional safety
Global market access
Compatible with these transmitters
Scanreco as a partner
A simple process

Step 1 - Consultation
Understanding your unique requirements

Step 2 – Evaluation
Review & finalize your solution
.png?width=960&height=720&name=namnl%C3%B6st-414_www4-3%20(1).png)
Step 3 – Delivery
Seamless implementation on-site

Step 4 – Aftersales
Ongoing support & evolution
Get into the specifics
Technical information about G4 PWM
Technical information
- Platform: G4
- Dimensions (WxHxD):
233 x 205 x 77 mm / 9.17 x 8.07 x 3.03 in - Weight: 1.2 kg / 2.6 lbs
- Power Supply: 12 or 24 VDC
- IP-Class: IP65
- Cable Interface: Terminal Connectors
- Fuse Internal: 10 Ampere
- Overload Protection: Yes, maximum 33 VDC (Fuse blows)
- Current consumption: 40 mA (idle) 60 mA + External loads in operation
- Analog Outputs: 6 bi-directional PWM outputs (totally 12 outputs interlocked/paired)
- Programmable output: current range 100 – 2500 mA, programmable dither frequency, short circuit proof, overload protected
- Digital Outputs: 6 digital outputs available, short circuit proof, overload protected, max. 1.8 Ampere load/output
- Dump Valve Output: Short circuit proof, overload protected, max. 2 Ampere load
- Digital Inputs: 2 digital inputs available (for speed setting management)
- CAN Bus: CANopen
- Radio frequency: 433 MHz or 915 MHz
- Ambient Temperature: -25°C to +70°C ~ -15°F to +158°F
