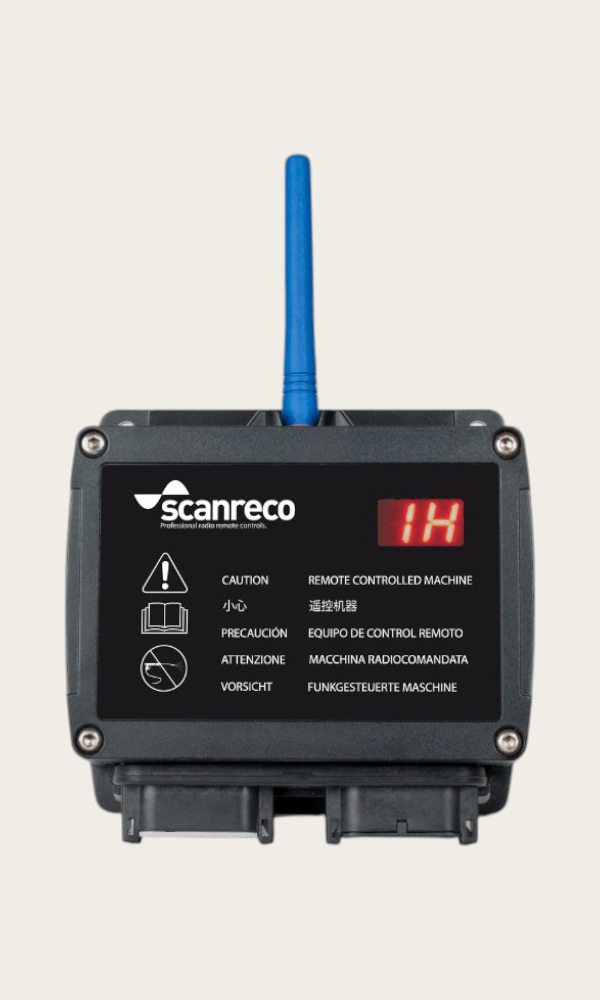

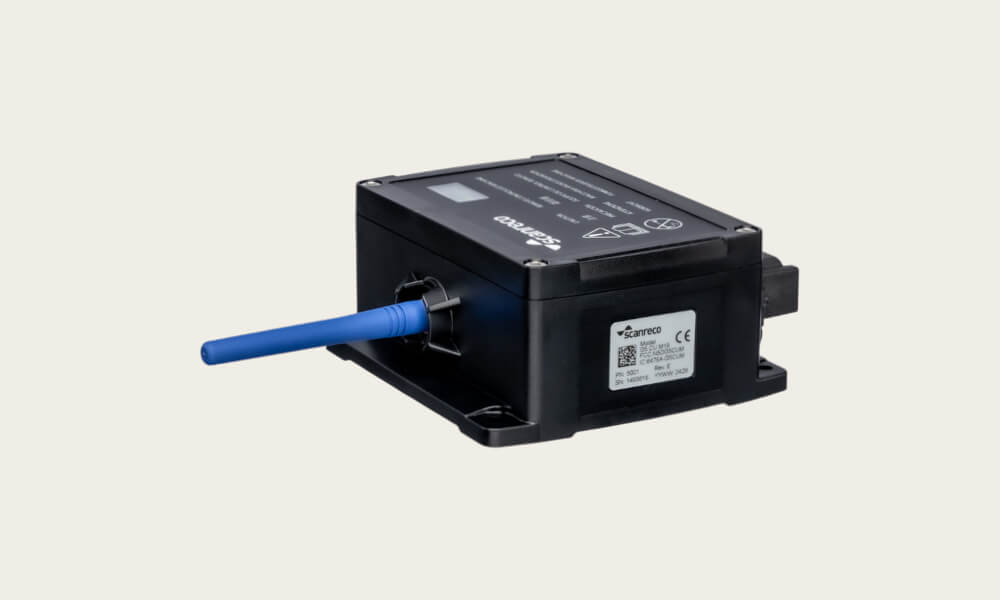

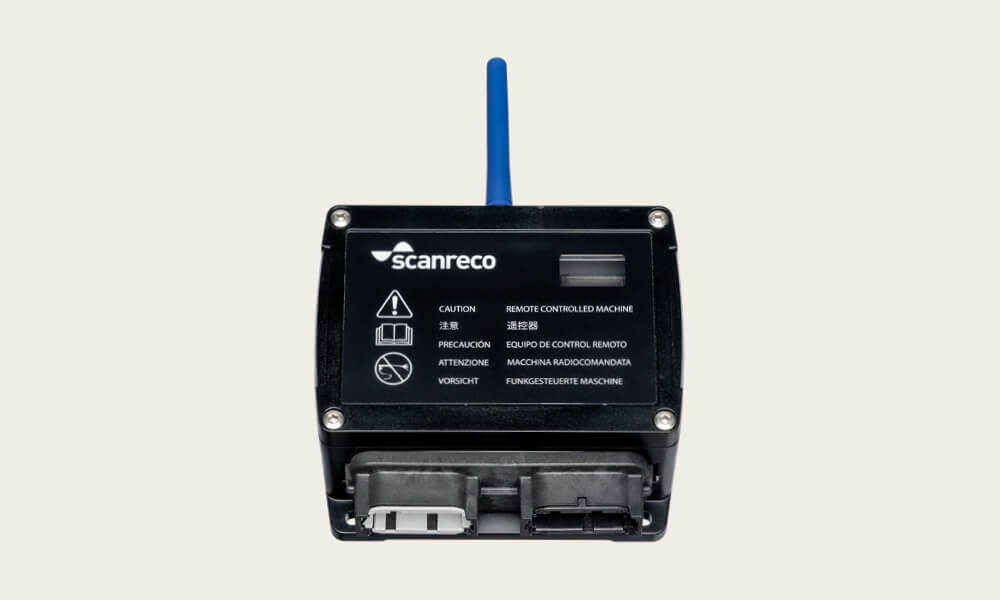

G5 MOSFET

Tailored receivers for digital or digital/proportional control

The G5 MOSFET receiver comes in two versions: M19 (digital-only) and M20 (digital plus one proportional output). Compatible with Pocket and Rocket transmitters, both options run on a reliable 2.4 GHz radio link and include a safety classified stop output (active in operation) for additional safety. Whether you need straightforward on/off functionality or the ability to finely adjust output levels, G5 MOSFET provides a robust, carefully engineered solution that stands up to industrial demands.

image - 2025-03-14T100411.420

Reliable

Global market compliant

Operating on a robust 2.4 GHz link helps ensure stable, interference-resistant connectivity, while the integrated safety classified stop output (active during operation) adds an immediate machine stop if engaged stop button, emptied batteries or lost radio link.
image - 2025-03-14T100411.420

Purpose-built

Programmable logic

Out of the 19 outputs, 14 can be repurposed to inputs from sensors or machine functions. Built-in control functions like block, latching, and delay-time let you customize machine responses without extra hardware. This reduces wiring complexity, minimizes need for supporting components, and allows for efficient control.
image - 2025-03-14T100411.420

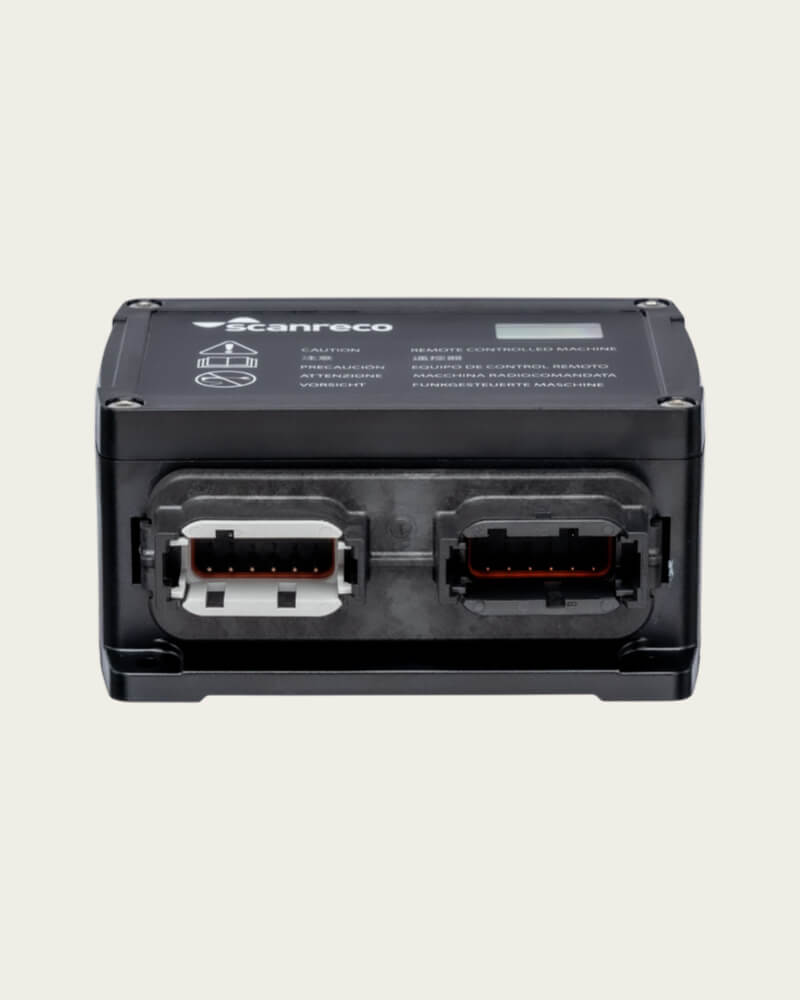

Connectors

Rugged connectors for easy installation

Dual rugged Deusch connectors for reliable, weather and vibration resistant connection to your machine. Operating on 12 or 24 VDC (absolute maximum ratings 9-36 VDC) allows the G5 MOSFET to integrate seamlessly into a broad range of industrial and mobile equipment. This versatility ensures consistent performance across varied voltage conditions, supporting smooth operations in demanding environments.

Receiver

Why choose G5 MOSFET?

G5 MOSFET stands out for its ability to handle both digital signals and proportional control in a single unit. Whether you need simple on/off functionality, a PWM or voltage output for gradual adjustments, it’s a versatile solution you can trust to maintain performance in demanding conditions

Comprehensive I/O

Configure up to 14 digital inputs/outputs and 5 dedicated digital outputs, plus an optional proportional channel in the M20 variant.

User-defined logic

Built-in software accommodates adjustable logic, eliminating extra relays and external modules.

Reliable operation

Engineered to IP67 standards—combining potted internals and heavy-duty components for dependable uptime in challenging conditions

Built for Pocket & Rocket

Seamlessly pairs with handheld transmitters in the G5 series, promoting convenience, portability, and straightforward deployment.

Choose between two models

Receiver

G5 MOSFET - M19

G5 M19 is dedicated purely to digital signals, offering up to 14 inputs/outputs plus 5 digital outputs for on/off control. Operating on 12 or 24 VDC with an active safety classified stop function, connects via 2.4 GHz radio and provides built-in logic

  • Functional safety: PL d (ISO 13849-1)
  •  Ingress protection: IP67

Receiver

G5 MOSFET - M20

Building on M19’s digital foundation, G5 M20 adds 1 PWM or voltage regulated proportional output for finer control. It retains up to 14 I/Os and 5 digital outputs, operates on 12 or 24 VDC with an active safety classified stop function, and leverages 2.4 GHz radio for on/off plus proportional control—all in one robust unit.

  • Functional safety: PL d (ISO 13849-1)
  •  Ingress protection: IP67

Compatible with these transmitters

  • IP67
  • 2.4 GHz

Transmitters

Pocket

Lightweight handheld with essential digital controls

Read more
  • PL d
  • IP65
  • 2.4 GHz

Transmitters

Rocket

Compact handheld with step-buttons, optional display

Read more

Scanreco as a partner

A simple process

Consultation-support-Scanreco

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.
Configuration_scanreco_system_cropped

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.
receiver on machine

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.
Scanreco-aftersales-support

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about G5 MOSFET

Technical information
  • Platform: G5
  • Dimensions: (WxHxD) 127 x 186 x 57 mm ~ 5 x 7.3 x 2.2 in (including antenna)
  • Weight: 0.5 kg / 1.10 lbs
  • Power Supply: 12 or 24 VDC (Absolute maximum ratings 9-36 VDC)
  • IP-Class: IP67
  • Cable Interface: 2 x 12 pin Deutsch connectors
  • Overload Protection: Yes, maximum 36 VDC
  • Current Consumption: Idle: <30 mA , Operational: 60 mA + External loads in operation
  • Digital Inputs: 14 (can also be used as digital outputs). Do not exceed supply voltage.
  • Digital Outputs: 19 MOSFET driven outputs, Short circuit proof, overload protected.
  • Proportional outputs: M20: 1 PWM or Voltage
  • Safety classified stop output: active when system is operational, short circuit proof, overload protected.
  • Max Output Load: 3A/output, 5A/bank, 10A/system
  • Radio frequency: 2.4 GHz
  • Ambient Temperature: -25°C to +70°C / -13F to +158F
