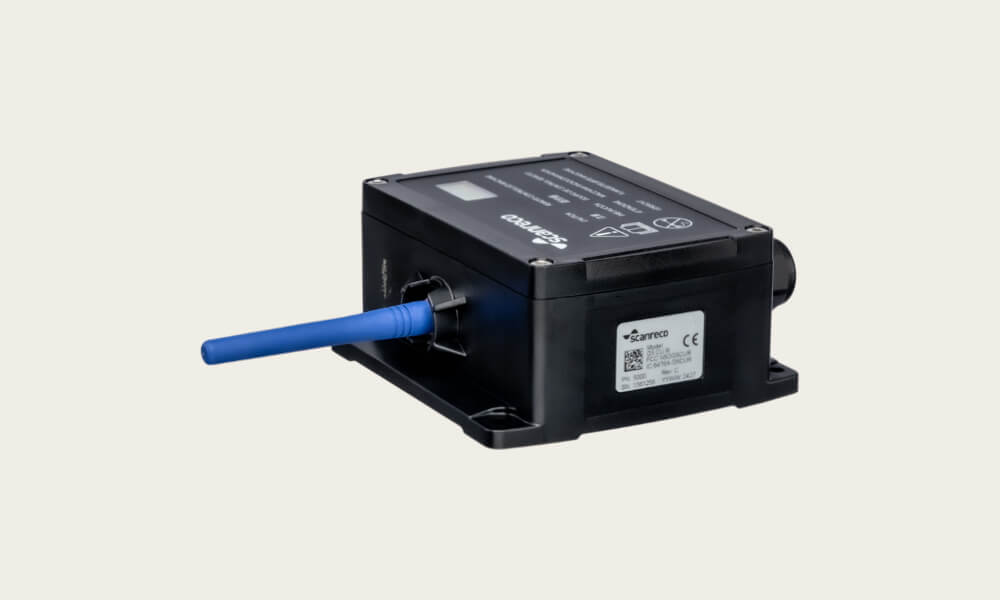

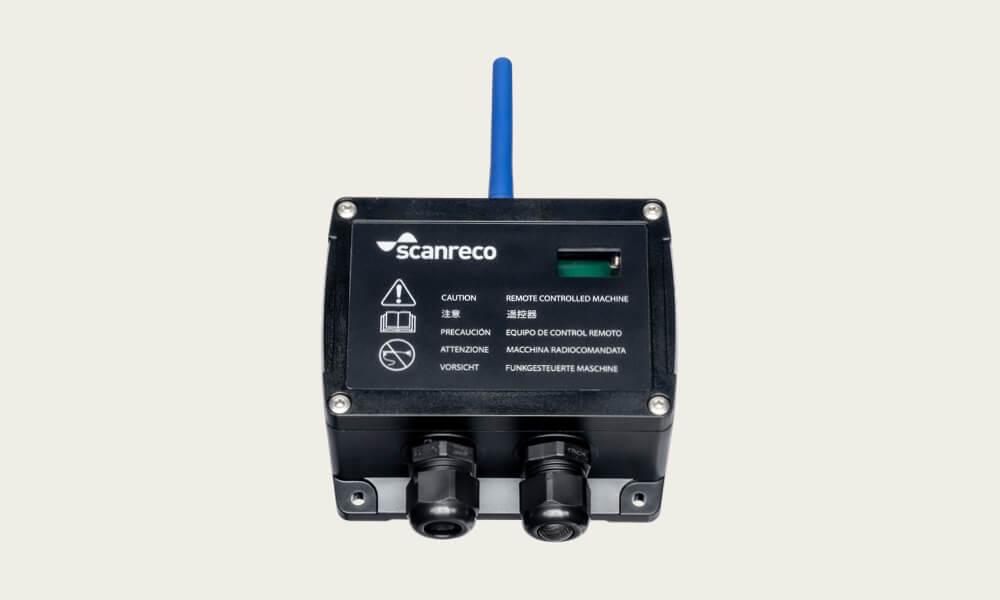

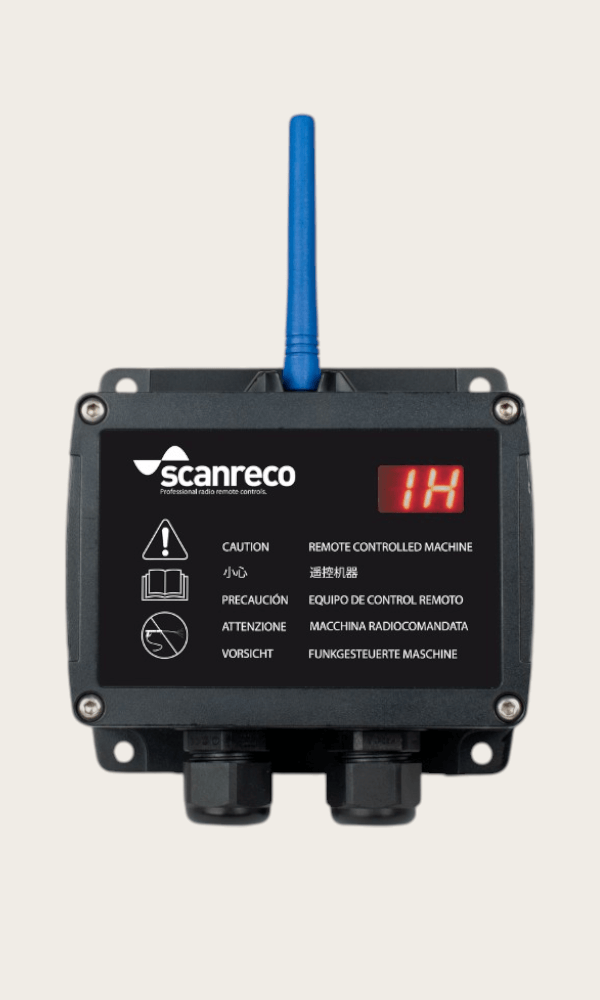

G5 Relay

IP65

Relay control for digital applications

Built for OEMs, the G5 Relay provides dependable control of digital signals, making it easy to integrate into a wide range of machines. Designed to work seamlessly with the Scanreco Pocket and Rocket, it enables precise activation of machine functions, electric components, and auxiliary systems.

With two different versions it can adapt to different setups, while built-in protective features support reliable operation. Engineered for harsh environments, the G5 Relay receiver withstands vibrations, extreme temperatures, and demanding conditions, making it a strong choice for construction, forestry, mining, and utility machines.

Options

Two models

Choose between five relays (G5 R5) or ten relays (G5 R10), so you get only the functions you need—no more, no less.

Reliable

Robust design

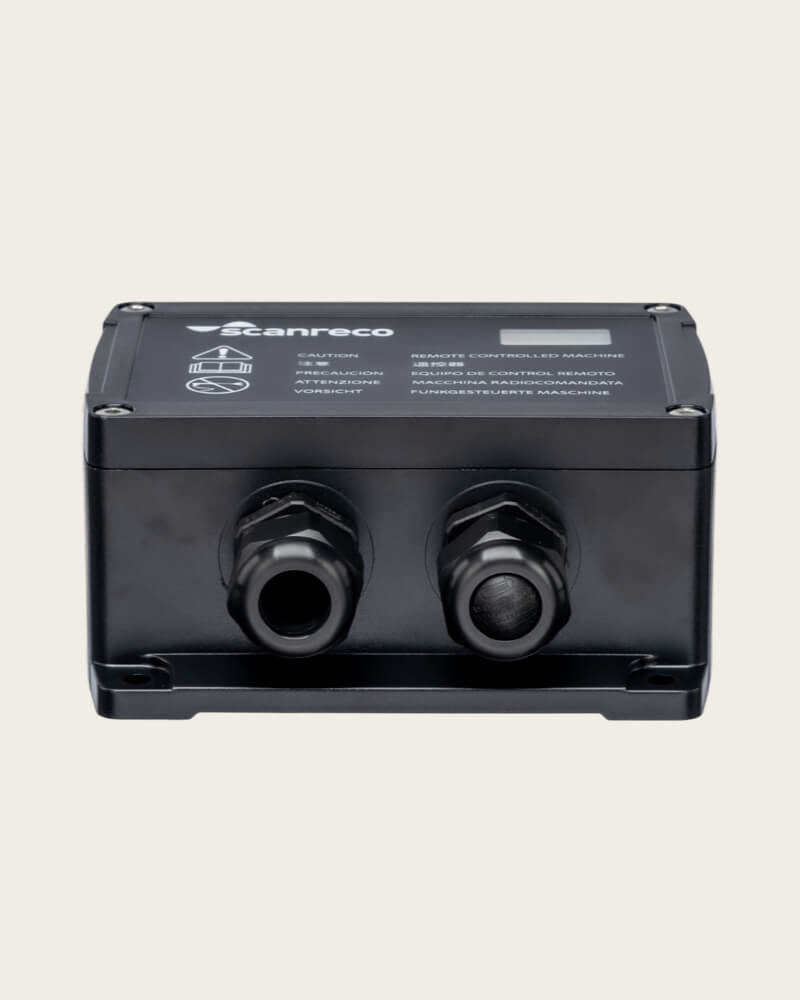

A rugged, IP65 rated enclosure shields internal components from dust, moisture, and vibrations, letting you deploy this receiver in tough applications without compromising reliability.

Perfect fit

Built-in logic

Built-in control functions like block, latching, and delay-time let you customize machine responses without extra hardware. This reduces wiring complexity, minimizes need for supporting components, and allows for efficient control.

Receiver

Why choose G5 Relay?

Designed for machine builders, the G5 Relay helps you control electric functions with ease. Whether you're turning components on and off, powering extra features, or managing key machine tasks, its flexible design and protective features make installation and use simple.

Flexible voltage & installation

Can be used with various input and output signal levels, both AC and DC. Higher load capability reduces the need for additional components, saving cost and time.

Global market access

Operates on 2.4 GHz frequency, making it suitable for wide geographical deployment without major design changes.

Built-in logic

Customizable functions and features to suit your specific machine application.

Optimized for Pocket

Seamlessly pairs with handheld transmitters in the G5 series, promoting convenience, portability, and straightforward deployment.

Choose between two models

Receiver

G5 Relay - R5

Ideal for smaller-scale digital operations, G5 R5 runs on 12 or 24 VDC supply and 2.4 GHz radio communication. It integrates 5 potential-free relays/digital outputs for on/off tasks.

Ingress protection: IP65

Receiver

G5 Relay - R10

When you require additional relay capacity, G5 R10 supports 10 potential-free relays/digital outputs, runs on a 12 or 24 VDC supply, and uses 2.4 GHz radio.

Ingress protection: IP65

Compatible with these transmitters

IP67
2.4 GHz

Transmitters

Pocket

Lightweight handheld with essential digital controls

PL d
IP65
2.4 GHz

Transmitters

Rocket

Compact handheld with step-buttons, optional display

Scanreco as a partner

A simple process

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about G5 RELAY

Technical information

Platform: G5

Power Supply: 12 or 24 VDC

IP-Class: IP65

Cable Interface: Terminal Connectors (tool free assembly)

Overload Protection: Yes, maximum 36 VDC

Current consumption: <30 mA (idle) 60 mA + External loads in operation

Digital Outputs: 5 or 10 digital outputs. Each output (relay) needs to be supplied with power through the terminal connector. External fuse is recommended. Not short circuit proof, not overload protected, max. 5 Ampere load/output. Each output is electrically isolated.
