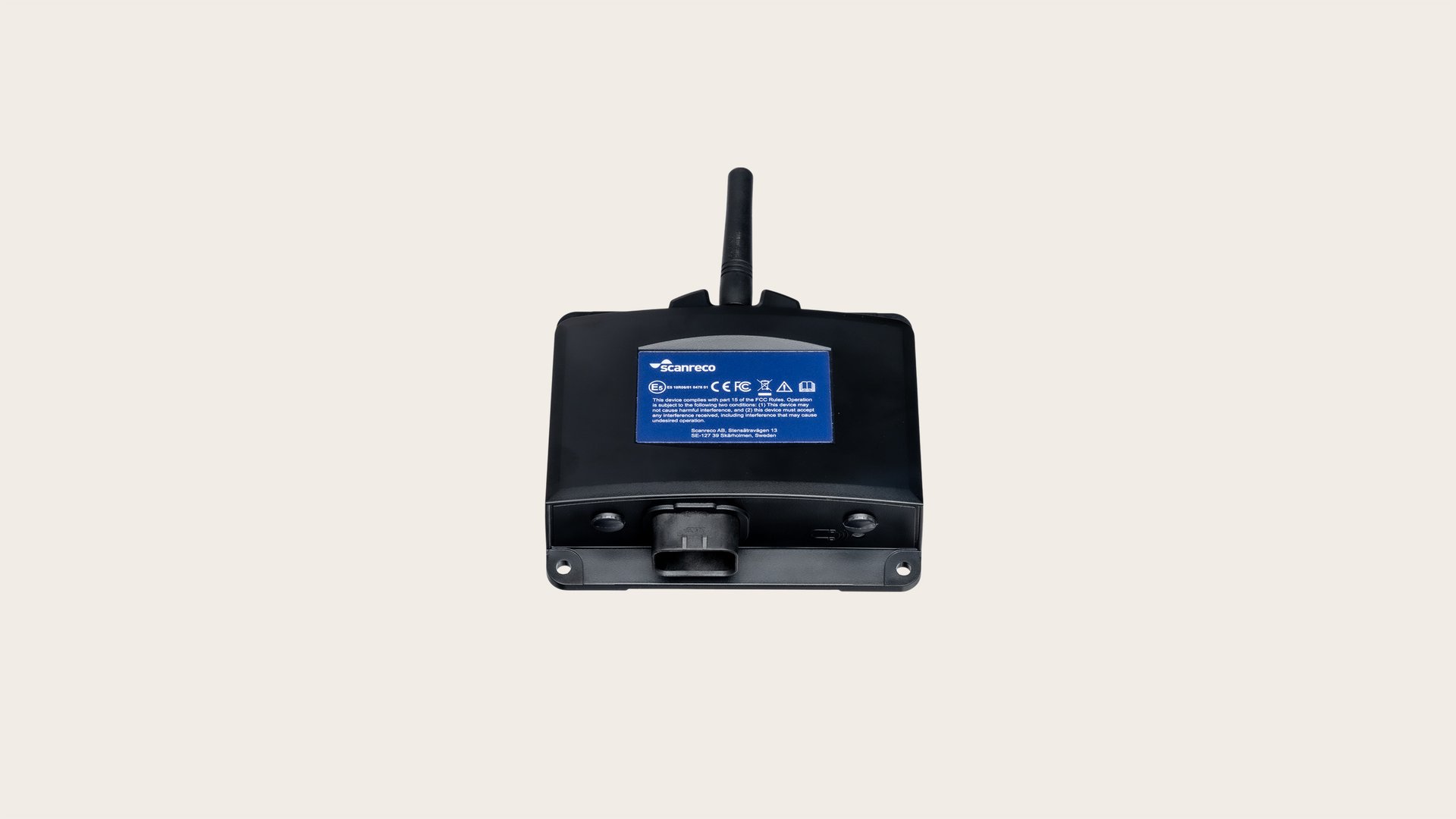

Product page_Hero image_Scanreco_G6 CAN

G6 CAN

CAN ready for high-level safety and control

Developed for professional use, the G6 CAN receiver is streamlined for machinery with a master controller. Delivered with CANopen as standard—and an optional CAN safety protocol—it offers built-in stop signals and robust safety outputs. Whether paired with Micro or Mini Flex transmitters, G6 CAN targets advanced applications that demand extra reliability and a lean, CAN-centric design. With an IP67 rating and a wide operating temperature range, it maintains stable performance in harsh climates, ensuring you can deploy advanced CAN features where they matter most.

image - 2025-03-14T100411.420

Purpose-built

Advanced CAN integration

Operates under both CANopen and optional CAN safety protocols, enabling seamless communication with your master controller. By focusing on a single, dependable protocol, G6 CAN reduces potential failure points and ensures consistent data flow across your equipment. Eliminating extra I/O modules also helps control hardware costs while maintaining a robust, centrally managed system.
image - 2025-03-14T100411.420

Functional safety

SIL 3 & PL e–rated

The G6 CAN is provided with both hardwired safety functions and a CAN safety protocol, giving you flexibility and freedom in how to best implement functional safety on your specific machine. Regardless if using the protocol or traditional outputs, the stop function, proportional and digital functions can be safety classed SIL 3 / PL e.
image - 2025-03-14T100411.420

Perfect fit

Flexible power & communication

Supporting 868 MHz, 915 MHz, or 2.4 GHz bands—with automatic frequency hopping—G6 CAN ensures interference-resistant communication worldwide. A 12/24 VDC supply and IP67 enclosure equip the receiver for tough conditions, from extreme temperatures to dusty or wet environments, so you can trust its performance anywhere your equipment operates.

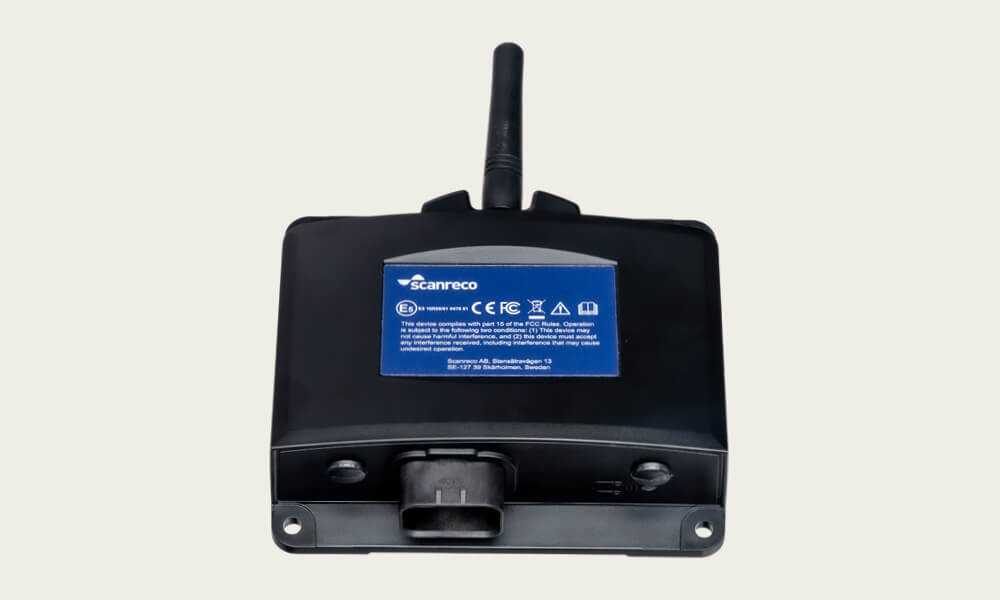

Receiver

Why choose G6 CAN?

Engineered for top-tier safety requirements, G6 CAN unites robust hardware outputs, flexible CAN bus support, and streamlined integration—all in a compact form factor. Its high ingress rating (IP67) and wide operating temperature range help it thrive where conventional receivers might fail, while advanced radio capabilities expand your operating range.

Professional-grade durability

Sealed to IP67 standards, G6 CAN performs reliably from –25°C to +70°C (13°F to +158°F). It outlasts mechanical shock and intense vibrations, making it well-suited for extremely harsh conditions.

Added safety

Our SISP™ modular safety design enables advanced functional safety while maintaining programming flexibility.

Efficient, global operation

A frequency-hopping radio covers dual-bands 868MHz/2.4 GHz and 915MHz/2.4GHz bands, letting you deploy machines worldwide.

High safety compliance

Pairs with Scanreco’s Micro Flex or Mini Flex transmitters to deliver functional safety levels SIL 3 and PL e outputs both as CANsafety protocol and hard-wired signals.

Compatible with these transmitters

  • PL e
  • SIL 3
  • SISP™
  • IP65
  • 868 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Micro Flex

A small sized, highly customizable transmitter with safety level PL e and SIL 3.

Read more
  • PL e
  • SIL 3
  • SISP™
  • IP65
  • 868 MHz
  • 915 MHz
  • 2.4 GHz

Transmitters

Mini Flex

Highly configurable medium-sized bellypack with safety classification PL e and SIL 3

Read more

Scanreco as a partner

A simple process

Consultation-support-Scanreco

Step 1 - Consultation

Understanding your unique requirements

Start by reaching out to our team for a detailed consultation. We’ll discuss your specific operational needs, challenges, and desired functionality, helping us understand how to configure the ideal remote control solution for your equipment.
Configuration_scanreco_system_cropped

Step 2 – Evaluation

Review & finalize your solution

Next, we'll provide a detailed specification with drawings, technical details, pricing, and lead times. Once the design is finalized, you can order a pilot version for real-world testing to evaluate its performance. This clarity allows you to assess if adjustments are needed or if the project is ready to proceed, ensuring the final configuration aligns with your goals.
receiver on machine

Step 3 – Delivery

Seamless implementation on-site

Once your customized system arrives, simply unpack and verify that everything matches the agreed design. Whether you’re integrating an entire belly-pack remote or a compact handheld transmitter, our team is on standby to guide you through installation and initial setup—ensuring your new remote control solution works smoothly from day one.
Scanreco-aftersales-support

Step 4 – Aftersales

Ongoing support & evolution

As markets and customer requirements evolve, machine configurations need to change with them. Whether it’s fine-tuning specifications, updating software logic, or fully reviewing your hardware layout, our global network of experts is ready to help. With branches, offices, and system integrators worldwide, we stay committed to being your “glocal” partner—one that’s close to home yet equipped with global knowledge to keep your operations running seamlessly.

Get into the specifics

Technical information about G6 CAN

Technical information
  • Dimensions: (W xDx H) 138 x 49 x 118 mm / 5.4 x 1.9 x 4.6 inches
  • Weight: 560 g / 1.2 lb
  • Protection category: IP67/UL50E Type 6
  • Operating temperature: (Celsius / Fahrenheit) -25 °C to +70 °C / -13 °F to +158 °F
  • Safety classifications: IEC 61508 / ISO 13849-1
  • Safety classified hardware outputs:
    LOOP = SIL 3/PL e
    STOP_OUT = SIL 3/PL e
    ACT_MOV = SIL 3/PL e
    CAN bus CANopen and Safety CAN
  • Overload protection: Yes (for the safety classified outputs)
  • Radio frequency bands: 868MHz, 915MHz, 2.4GHz
  • Frequency management: Automatic frequency hopping
  • Range: (typical) > 100 m
  • Power supply to receiver: 12/24 VDC (Absolute maximum ratings 9-36 VDC)
  • Fuse: Use external fuse 10 A
  • Current consumption: < 200 mA (excluding external loads and in radio mode)
  • BLE: Available for configuration via Scanreco Modulate software

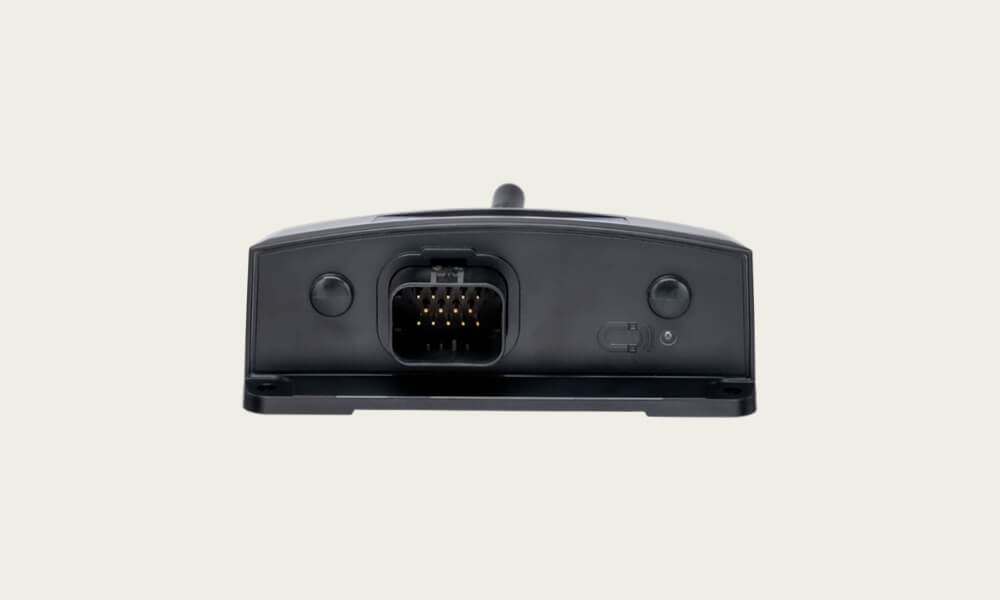

  • Connector type: AMPSEAL 14-pin
  • Cable control: Optional, requires external connector
