Presseure reducer blocks

Hydro-driven valves and variable flow pumps always under control with IT128 pressure reducer blocks

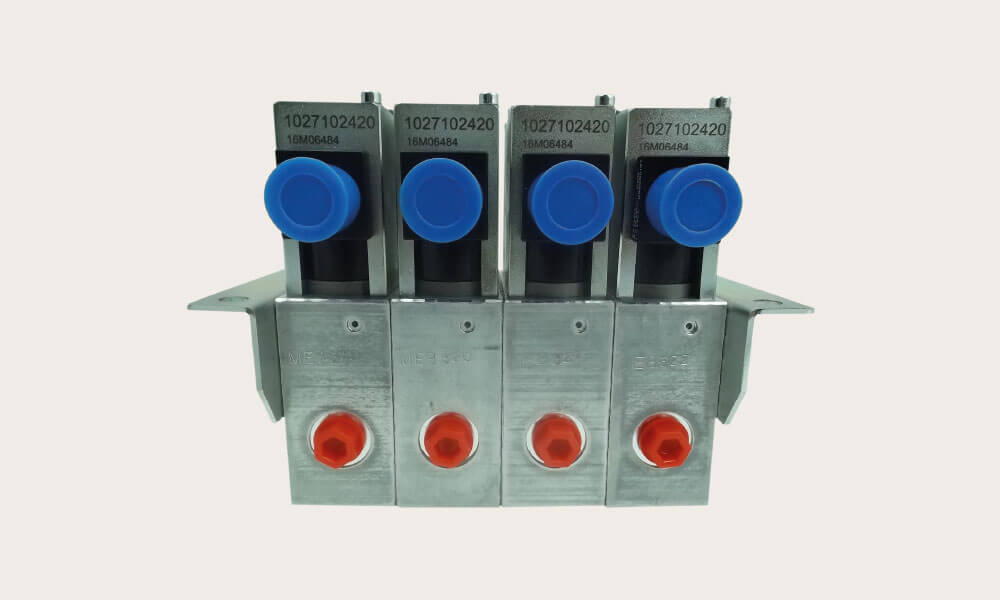

Our IT128 are proportional, modular, retrofit blocks designed to be used with a remote control system to operate servo-controlled hydraulic machines.

It serves as an effective alternative for adding an additional control to the existing system on the machine, such as hydraulic joysticks in the driver's cabin.

By varying the command current (PWM) to the coils of the block, the flow is adjusted proportionally, which in turn actuates the hydraulic directional valve of the machine.

As the driver's cabin joysticks are no longer essential, the operator can move closer to the machine's work area (e.g., to ensure the task is performed correctly) or position themselves at a greater distance, thereby enhancing safety.

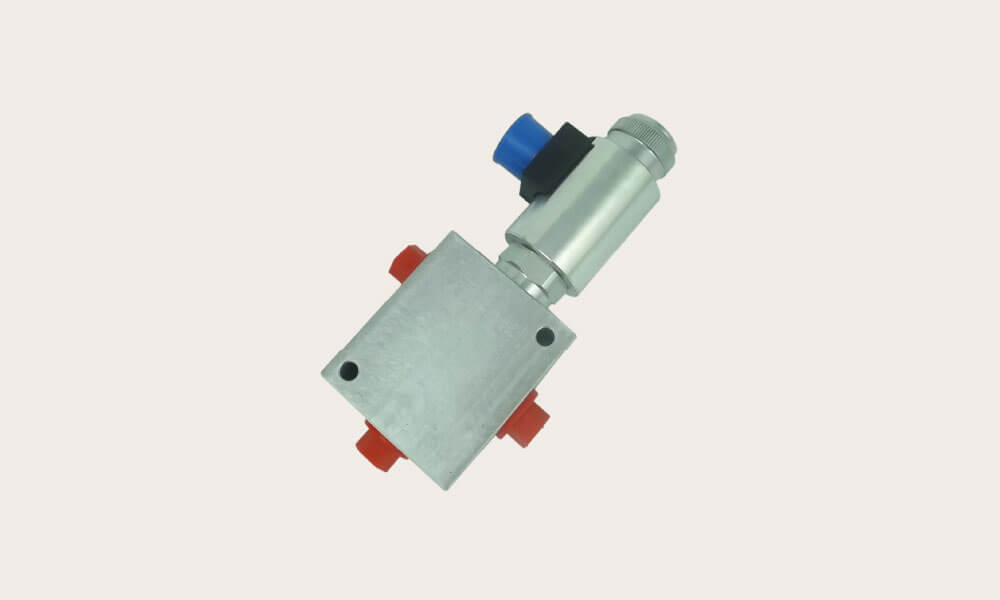

The block is designed in a modular format, allowing for the assembly of sections with up to 8 functions. Additionally, upon request, we can supply a solenoid valve to switch between manual and remote-controlled operation modes.

Get into the specifics

Technical information about IT128

Technical information
  • Power supply: 12 or 24 VDC
  • Max pressure in V: 50 bar
  • Max pressure in L: 1 bar
  • Max flow: 2 L/min / 67.6 oz/min
  • Max current: 1.6A (12V) / 0.8A (24V)
  • Frequency: 120 Hz
  • Coils resistance: 3.7Ohm (12V) / 15.5Ohm (24V)
  • Max pressure in X: 28 bar
  • Hysteresis: 5%
  • IP-class: IP65
  • Weight: 2.5 Kg / 5.5 lbs (single section)
  • Filtration: 10 microns
