Proportional servocontrol

MOD 10: Flexible retrofit solution for truck mounted cranes with manual control valves

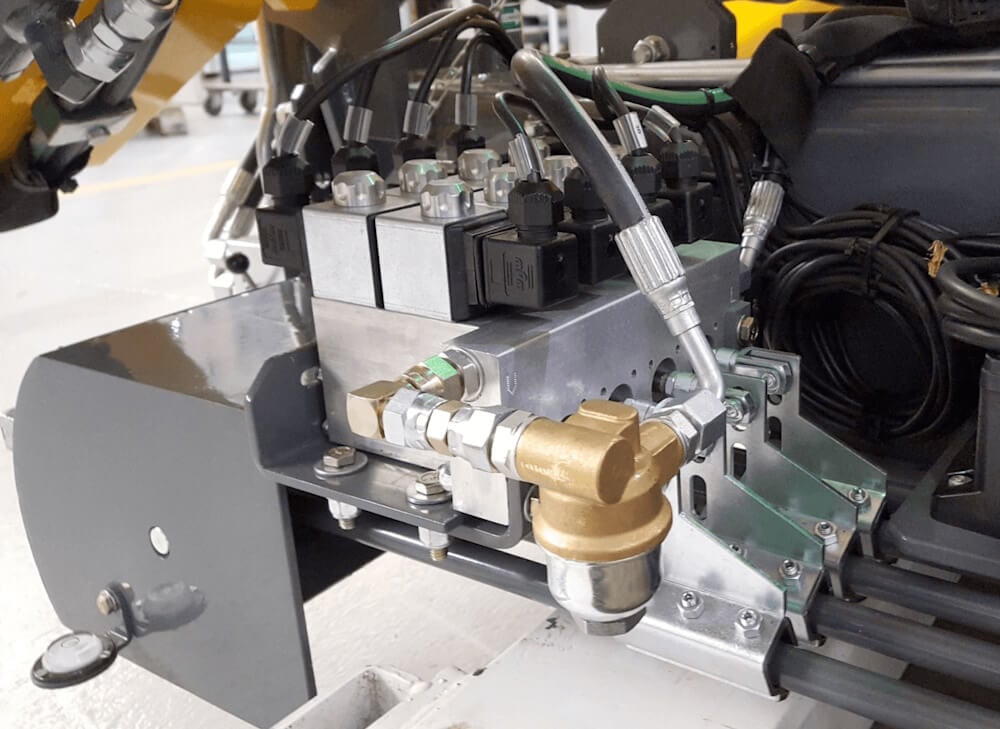

Our MOD10 proportional servocontrol block has been developed to enable the remote control of any type of machine equipped with manual control valves. This retrofit integration can be done via a radio or cable remote control system, for instance.

Each servocontrol consists of a block of modular hydraulic pistons with mechanical feedback, which are controlled through a pair of proportional electro-valves.

The installation of our MOD10 proportional hydraulic blocks on dual control rods ensures compatibility with all types of machines. Essentially, MOD10 serves as a proportional actuator, allowing remote operation of hydraulic valves.

A key advantage of this solution is its ability to easily convert a manually operated machine into one that can be controlled via radio remote, without altering the main hydraulic circuit.

The manual control remains fully functional and can still be used at any time.

Get into the specifics

Technical information about MOD10

Technical information
  • ower supply: 12V or 24V
  • Working current range: 600 - 1400 mA (12V) / 300 - 700 mA (24V)
  • Frequency: 50 Hz
  • Working temperature range: -20 - +60 °C / -4 - 140F
  • Connectors: DIN 43650 A

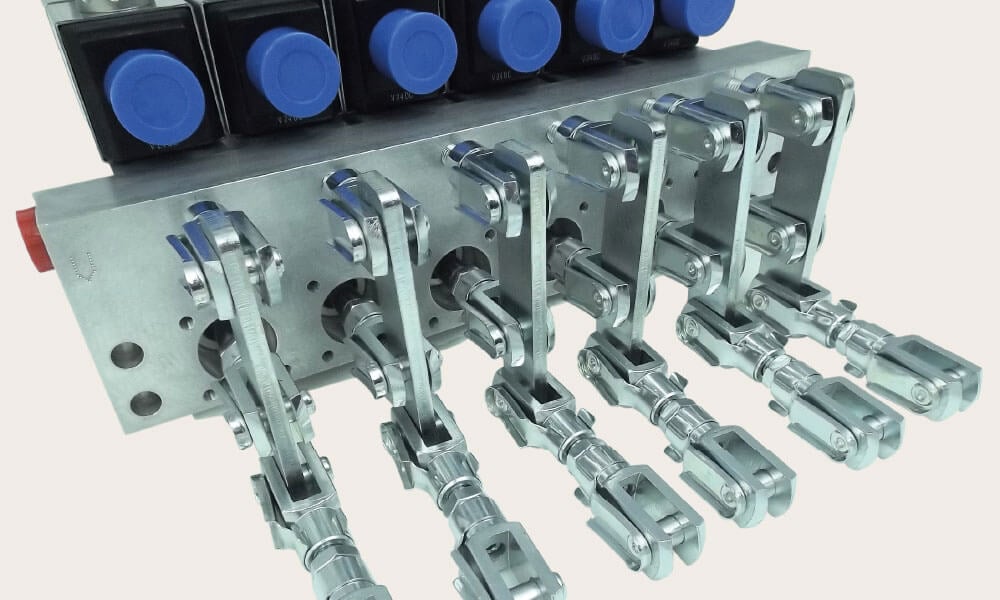

  • Mechanical stroke: ±13 mm / 0.5 in (±20 mm / 0.8 in with stroke amplifier mounted)
  • Feedback: Mechanical
  • Fluid type: Mineral oil 10 - 200 cSt
  • Max blow-by: 100 cc/minute
  • Max working pressure: 30 bar
  • Max thrust: 1300 N (at 30 bar)
