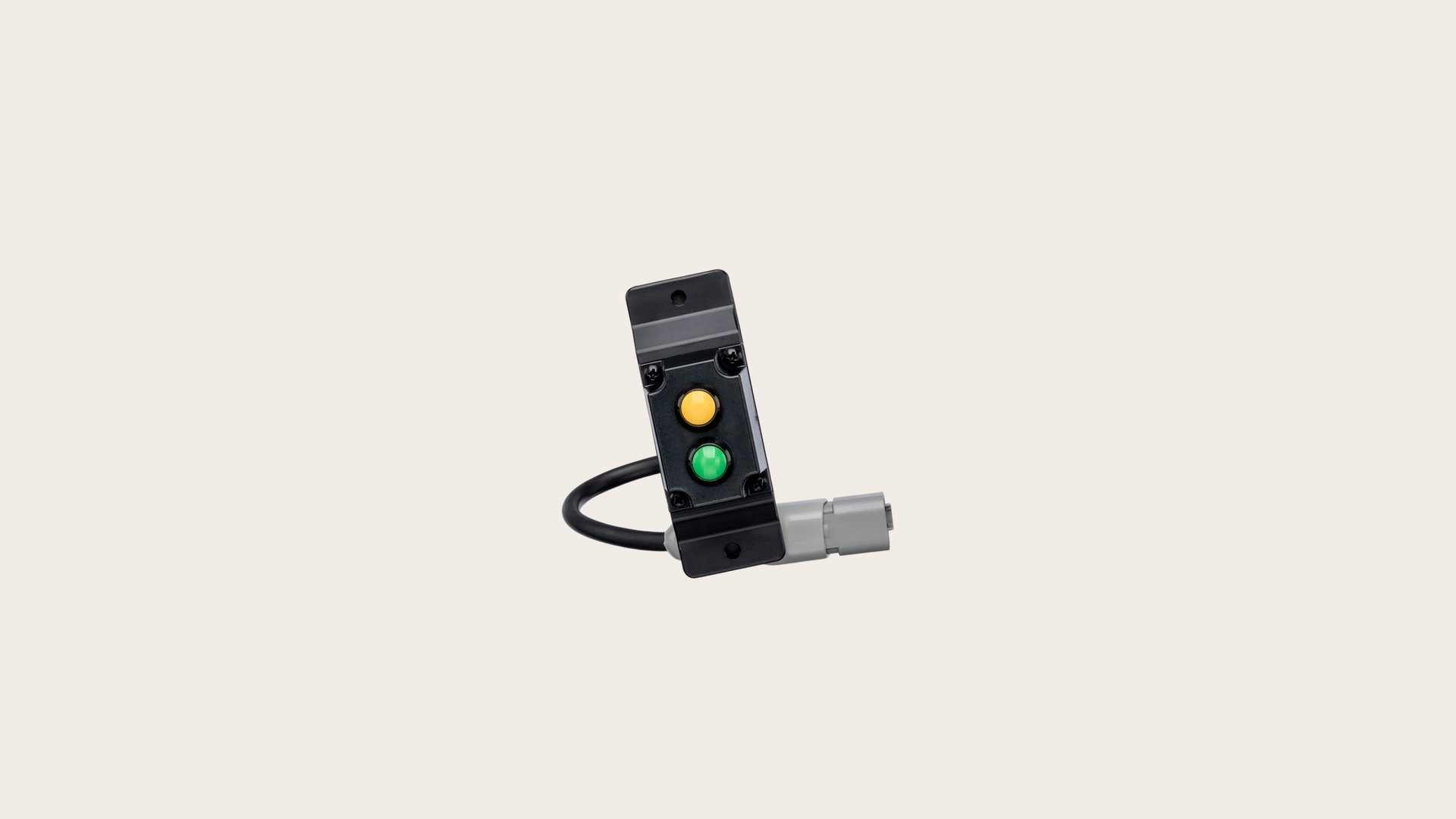

Product page_Hero image_Scanreco_VRG

Ramp generator

VRG: progressive control of proportional actuators at your fingertips

Our VRG ramp generator progressively controls a proportional actuator, both in acceleration and deceleration, through a digital (on/off) or push-button command. The VRG is available with three output options:

•    PWM A+B (for directly commanding solenoid valves)

•    Analogue signal (e.g., 0-5V, 0.5-2.5V, or 0-10V with directional on/off)

•    Ratiometric signal (for Danfoss modules)

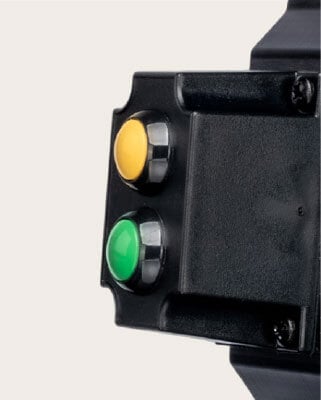

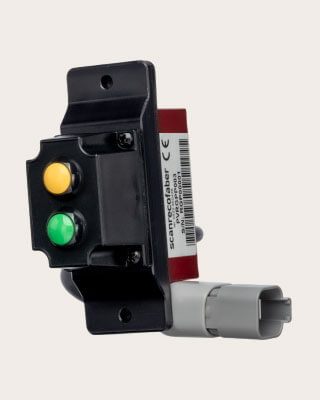

Commands can be received by the VRG from digital inputs or onboard push-buttons (panel version).

When "side A" is activated (via IN1 input or P1 button), starting from rest, the output gradually increases to the maximum set value, following a linear acceleration ramp for a predefined duration.

The output remains at the maximum value as long as the command is active. Upon release, the output decreases toward the minimum value with the set deceleration ramp.

The device configuration can be easily customized by connection to a PC thanks to our intuitive serial interface adapter, with the possibility to change parameters and enable different working modes.

Get into the specifics

Technical information about VRG

Technical information
  • Power Supply Voltage: 10 - 30 VDC
  • Output range (min/max): PWM: 50-2500 mA / signal: 0-10V / ratiometric: 25-50-75 % of Vsupply
  • Working Temperature Range: -40 - +70 °C / -40 - 158F
  • PWM frequencies: 50, 60, 70, 85, 100, 125, 150, 200, 250, 300 Hz
  • Digital input thresholds: High > 3V / Low < 2V
  • Digital outputs max current: 2000 mA

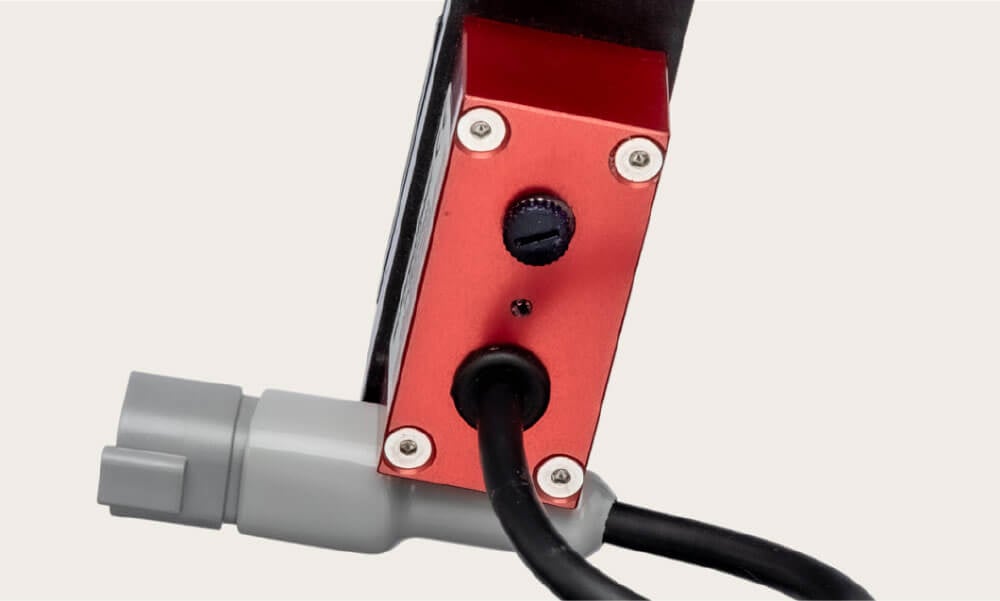

  • Connections: cable L=20 cm / 7.9 in with Deutsch DT04-8 connector
  • IP-Class: IP67
