1-axis fingertip joysticks

Take control with our PWM, voltage and CAN fingertip joysticks on one axis

Our range of single-axis fingertip joysticks offers solutions with either spring return or mechanical friction. All versions feature joystick command based on the measurement of the magnetic field from a permanent magnet using redundant Hall effect probes, ensuring durability and resistance to wear.

Four main versions are available, each defined by its output type:

•    The MAC2L is an electronic joystick with CAN bus output.

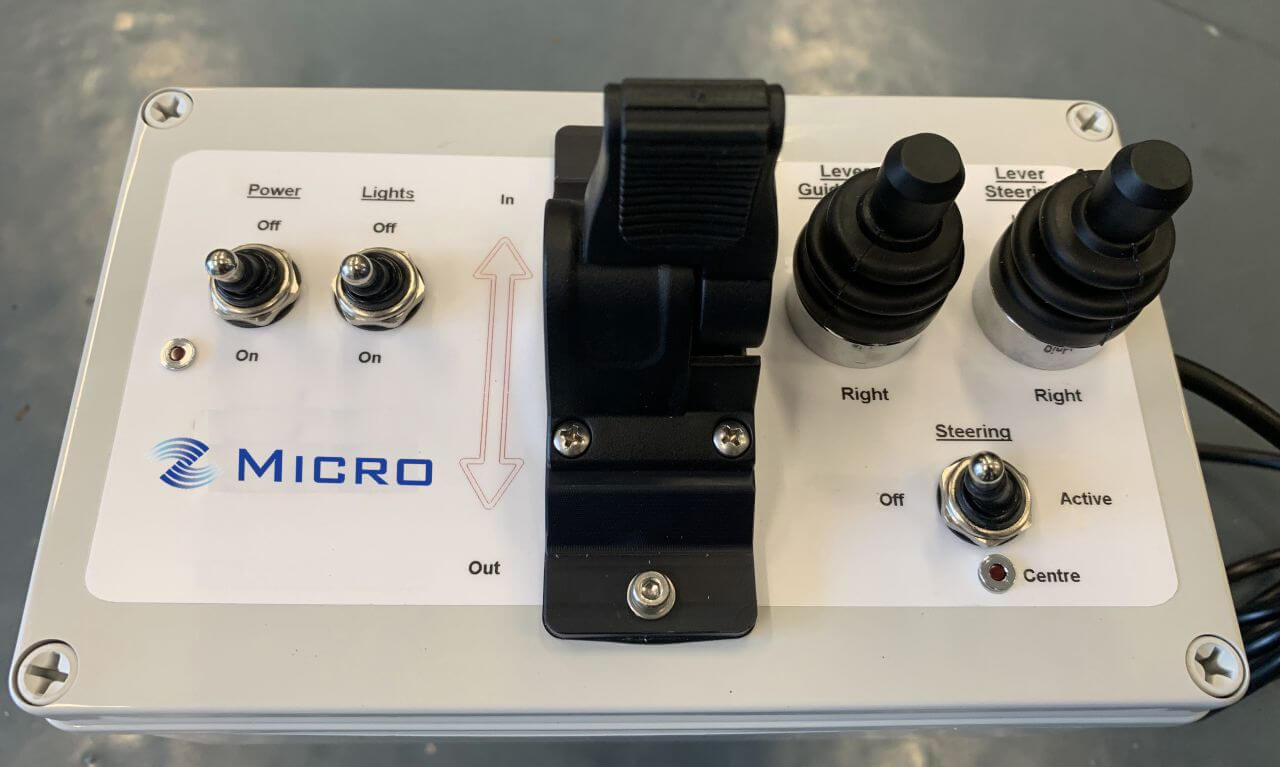

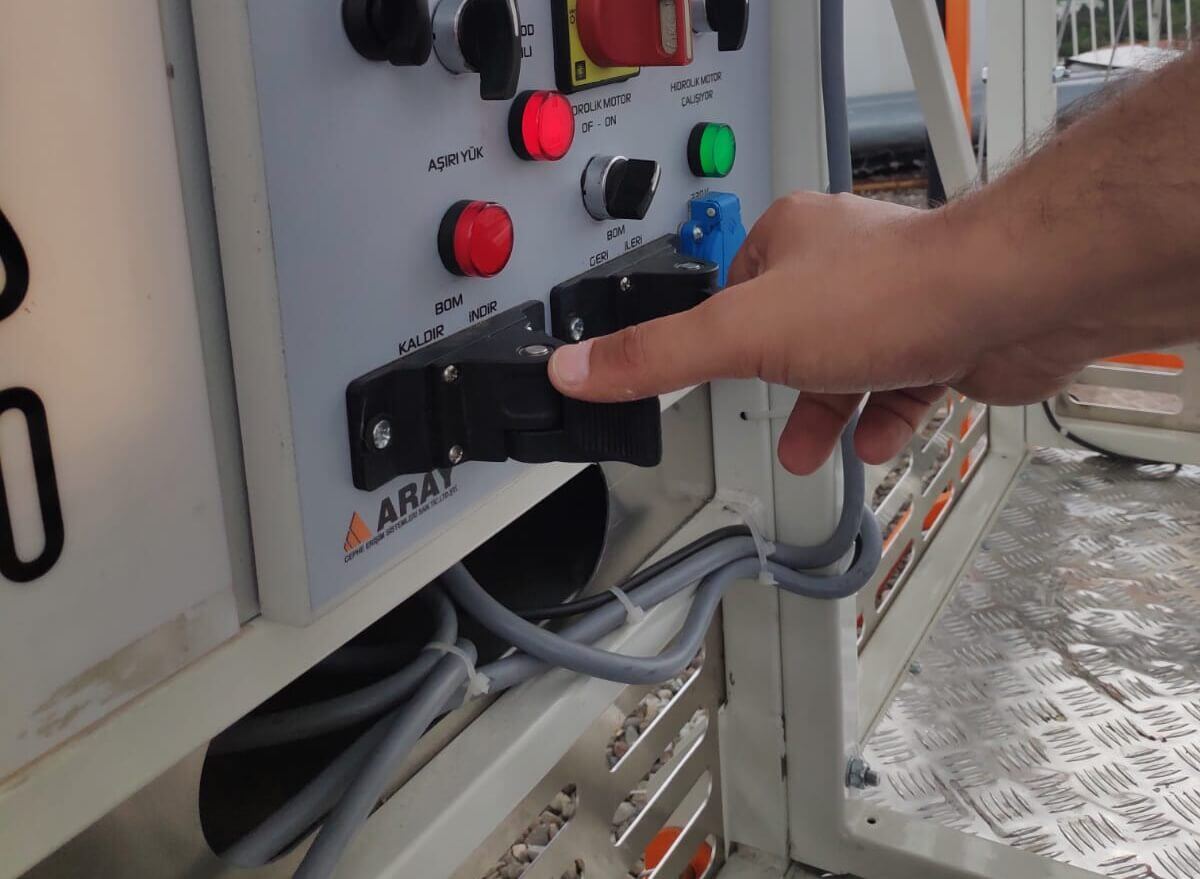

•    The MAP2L is an electronic joystick with PWM outputs, capable of directly controlling two PWM solenoid valves.

•    The MAS2L features a voltage signal output, also available with ratiometric configuration

•    The MSPL is an electronic Hall effect joystick with PWM signal outputs, where the duty cycle is controlled by the lever movement.


For machines operating in high-salinity environments, marine versions are available, with special treatments to enhance salt resistance.

Get into the specifics

Technical information about our 1-axis finger joysticks

Technical information
  • Power Supply Voltage: 10 - 30 VDC
  • Working angle: ± 30 degrees
  • Working Temperature Range: -40 - +70 °C / -40 - 158F
  • Force for paddle at full stroke: Approx. 3.5N ±10% (measured on the top of paddle)
  • IP-Class: IP66
  • EMC compatibility: ISO EN 14982:2009
