Single-axis joysticks

PWM, voltage and CAN single-axis joysticks, for efficient and flexible control of your system

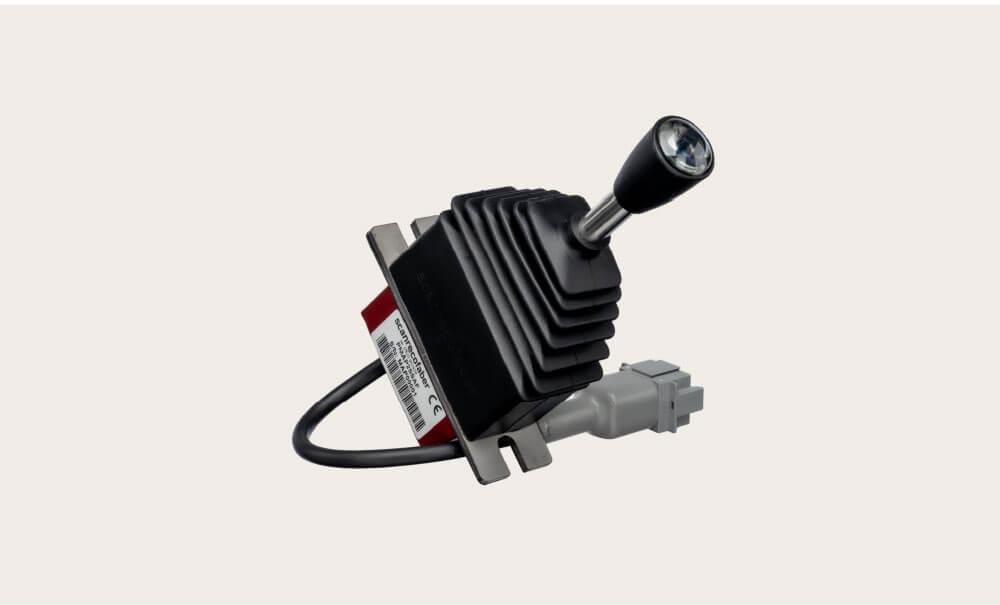

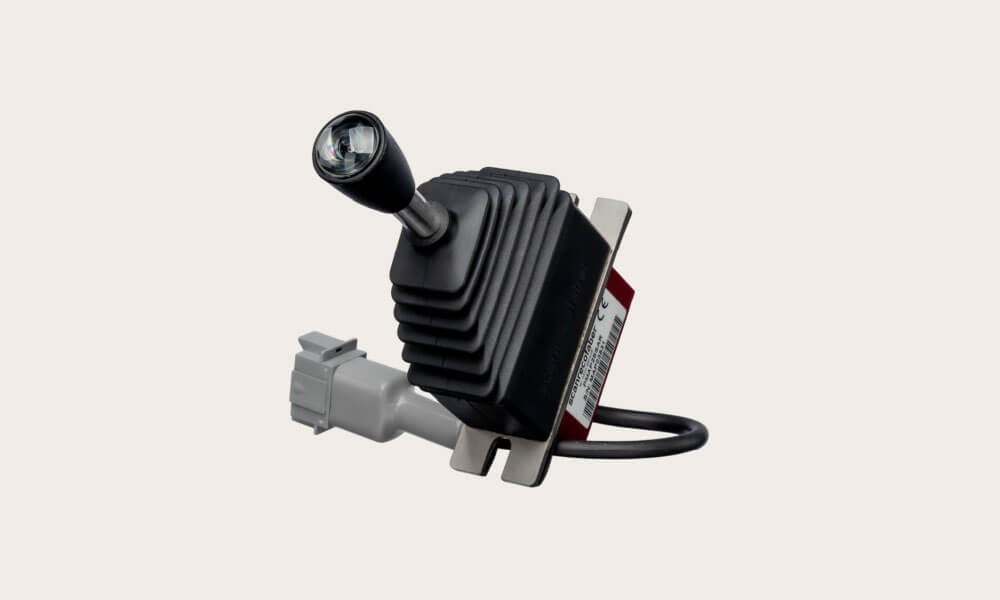

The MAP2, MAS2, MAC2 and MSP 1-axis joysticks are electronic manipulators designed to control two proportional solenoids.

The MAS2 version provides signal outputs (which can also be configured as ratiometric signals), while MAP2 has power PWM outputs capable of directly controlling two PWM solenoid valves. MAC2 features instead CAN bus outputs, whereas the MSP is a single-axis electronic Hall effect joystick with PWM signal outputs, where the duty cycle is controlled by the lever movement.

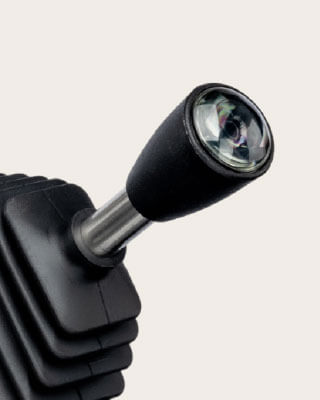

All joystick versions are supplied with a spring return knob or, optionally, a mechanical clutch.

Similar to the two- and three-axis versions we manufacture, these single-axis joysticks can be programmed by the installer using our simple interface adapter.

For machines operating in high-salinity environments, marine versions are available, offering special treatments for enhanced salt resistance.

The joystick operation of all models relies on the measurement of a permanent magnet's magnetic field using redundant Hall effect probes, which are durable and not prone to wear.

Get into the specifics

Technical information about our 1-axis joysticks

Technical information
  • Power Supply Voltage: 10 - 30 VDC
  • Working angle: ± 26 degrees
  • Working Temperature Range: -40 - +70 °C /-40 - 158F
  • Force for knob at full stroke: 20 N
  • IP-Class: IP65
  • EMC compatibility: ISO EN 14982:2009
