PWM driver

STU: combine joysticks, radio remotes and more with our configurable PWM driver with CAN interface

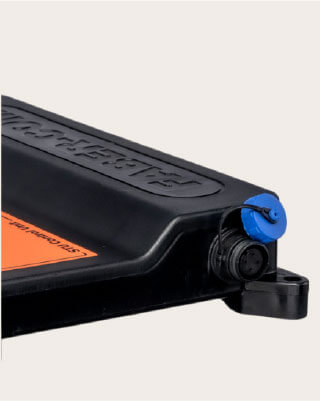

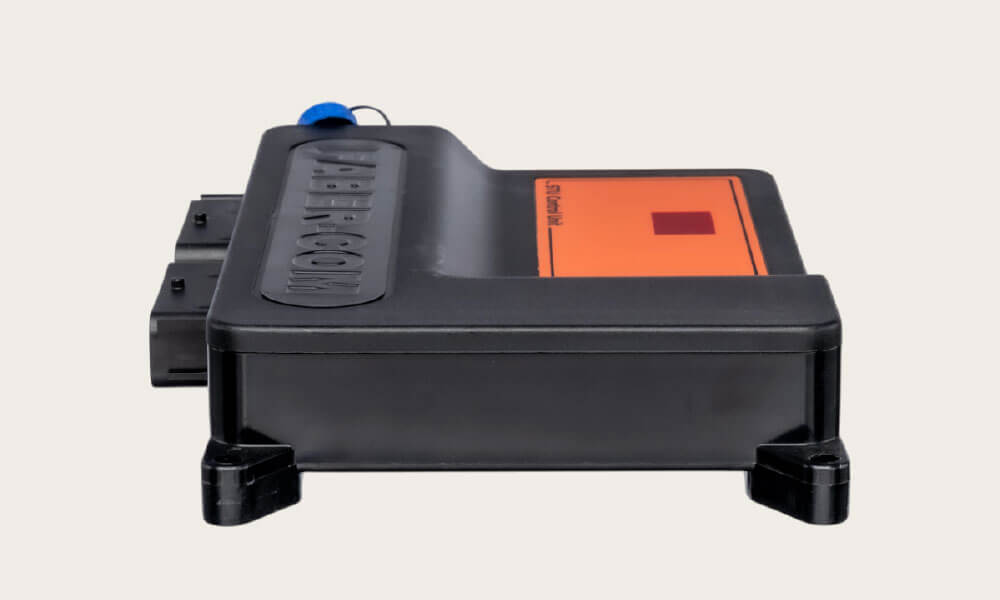

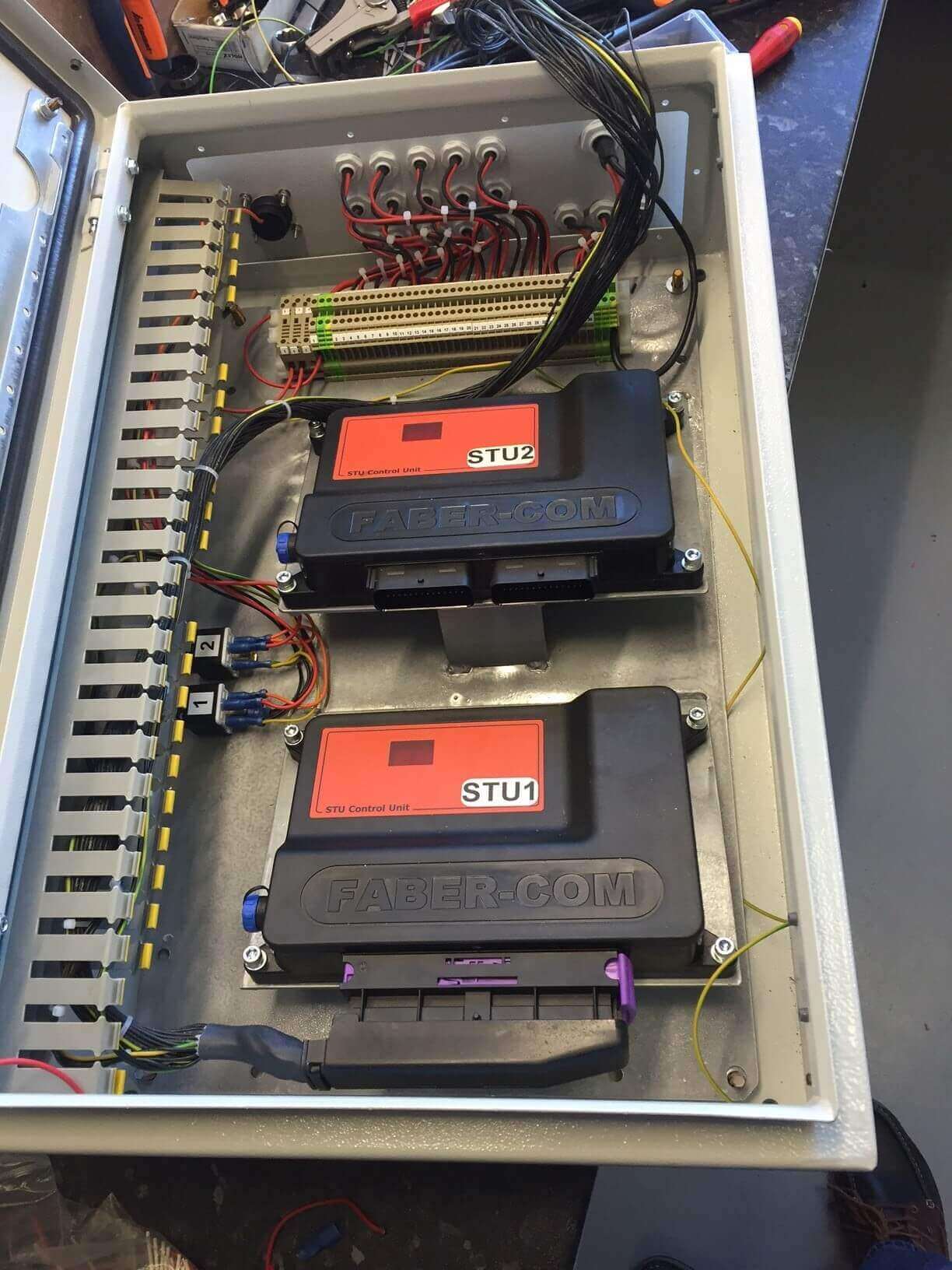

The STU-PWM proportional control card regulates solenoid valves, controlling up to 8 modules with 8+8 PWM outputs using analog input signals (0 to 5V). It also provides a stabilized 5V supply for potentiometric joysticks.

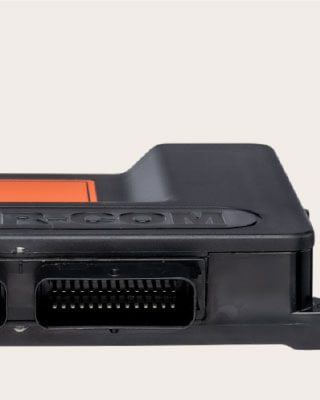

The card includes 8 analog inputs, CAN bus interface, 1 control panel enable input, 2 enable inputs, 1 for selecting LOW/HIGH speed (optional), and 3 ON/OFF inputs for direct control.

It has 8+8 PWM outputs for solenoid valves, a DUMP VALVE output for hydraulic pressure control, a FAULT output for error signaling, and 3 ON/OFF outputs.

Key features include adjustable PWM frequency, output currents, rise/fall time ramps, and optional speed settings. The DUMP VALVE has a programmable delay to prevent pressure spikes.

Its safety features include programmable deadband, stroke, and thresholds, as well as feedback-controlled relays and error reporting through the FAULT output.

Get into the specifics

Technical information about STU

Technical information
  • Power Supply Voltage: 10 - 30 VDC (inner 5x20 8A fuse type F8A)
  • Current absorption: 300 mA + load outputs (max 7.5A)
  • Supply for external potentiometers: +5V - max current 50 mA
  • Working temperature range: -20 - +70 °C / -4 - 158F
  • PWM minimum current range: from 100 to 2500 mA
  • PWM maximum current range: from 100 to 2500 mA
  • PWM frequency: 50-60-70-85-100-125-150-200-250-300 Hz
  • CAN bus lines: 1
  • ON/OFF outputs maximum current: 2500 mA (700 mA for FAULT output)
  • Analog inputs impedance: 11 KOhm towards 2.5V
  • Overall dimensions with connector mounted: 256 x 210 x 45 mm / 10 x 8.3 x 1.8 in
  • Drill interaxis: 242 x 142 mm / 9.5 x 5.6 (n. 4 holes of 6 mm / 0.2 in diameter)
