Analogue slope sensor

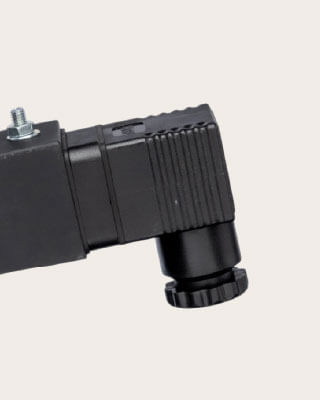

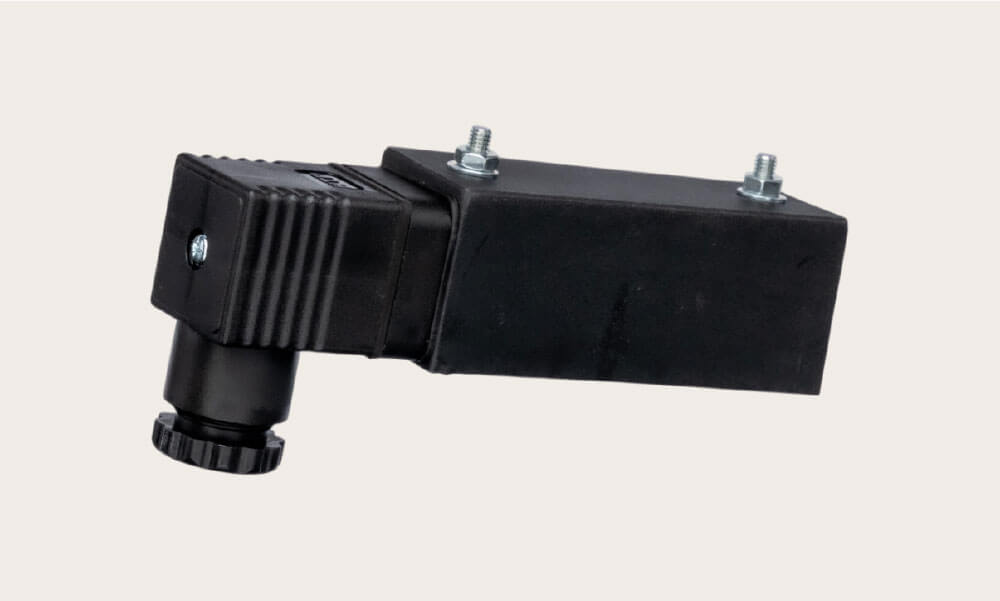

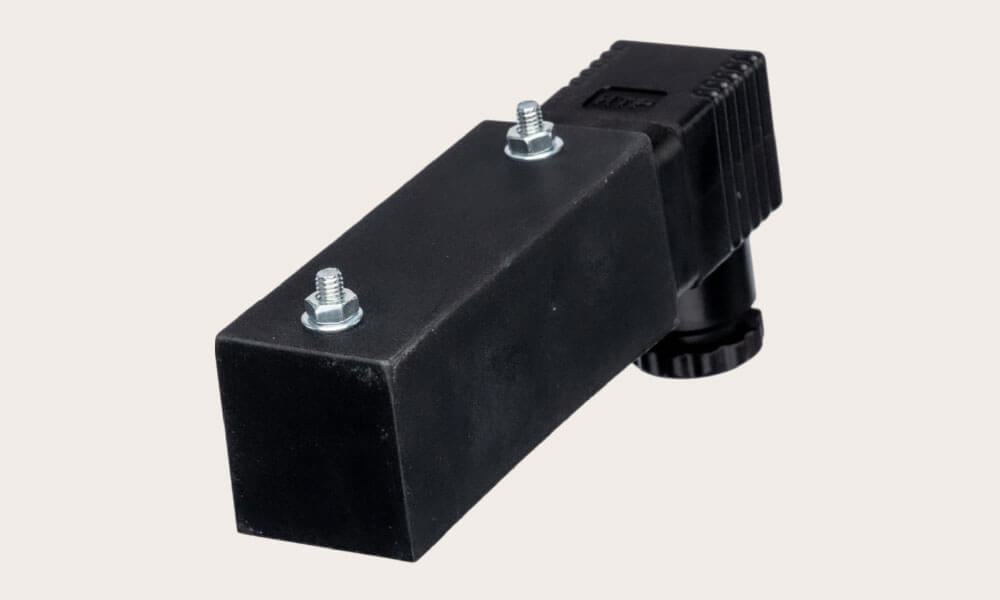

FSI-AN: a single-axis analogue slope sensor you can rely on for countless applications

The FSI-AN analogue inclination sensor operates on a single axis and features a 4-20mA current output, available with various working angles.

The output current is proportional to the sensor's inclination relative to the horizontal position.

When the sensor is positioned with its long side perfectly horizontal, the output current should range between 11.9mA and 12.1mA.

During installation, it is important to verify that the output current in the horizontal position falls within this range.

Get into the specifics

Technical information about FSI-AN

Technical information
  • Power Supply Voltage: 10 - 32 VDC
  • Working range: different ranges available
  • Resolution: 0.6 degrees
  • Current absorbed with output disconnected: 18mA (at 12VDC) – 20mA (at 24VDC)
  • IP-Class: IP67
  • Maximum output voltage drop: 5.5V
  • Answer time: 164 ms
  • Working temperature: -40°C ÷ 70°C / -40 - 158F
  • Precision at 0°-70°C: ± 0.7 degrees
  • Precision at -10°-70°C: ± 2.0 degrees
