SCSi Stabilizers Control System

SCSi - Take the safety of your work man basket to the next level!

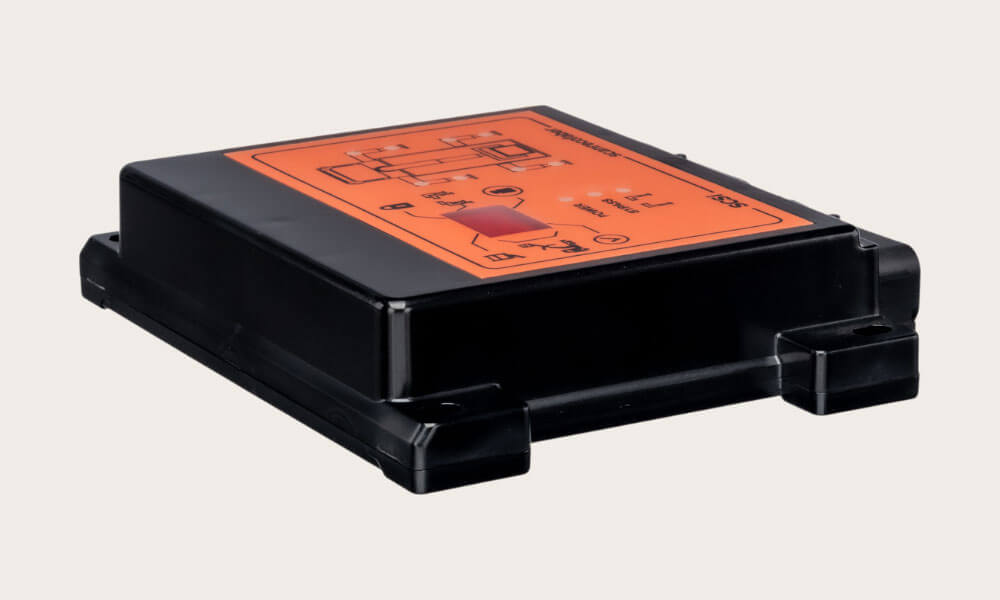

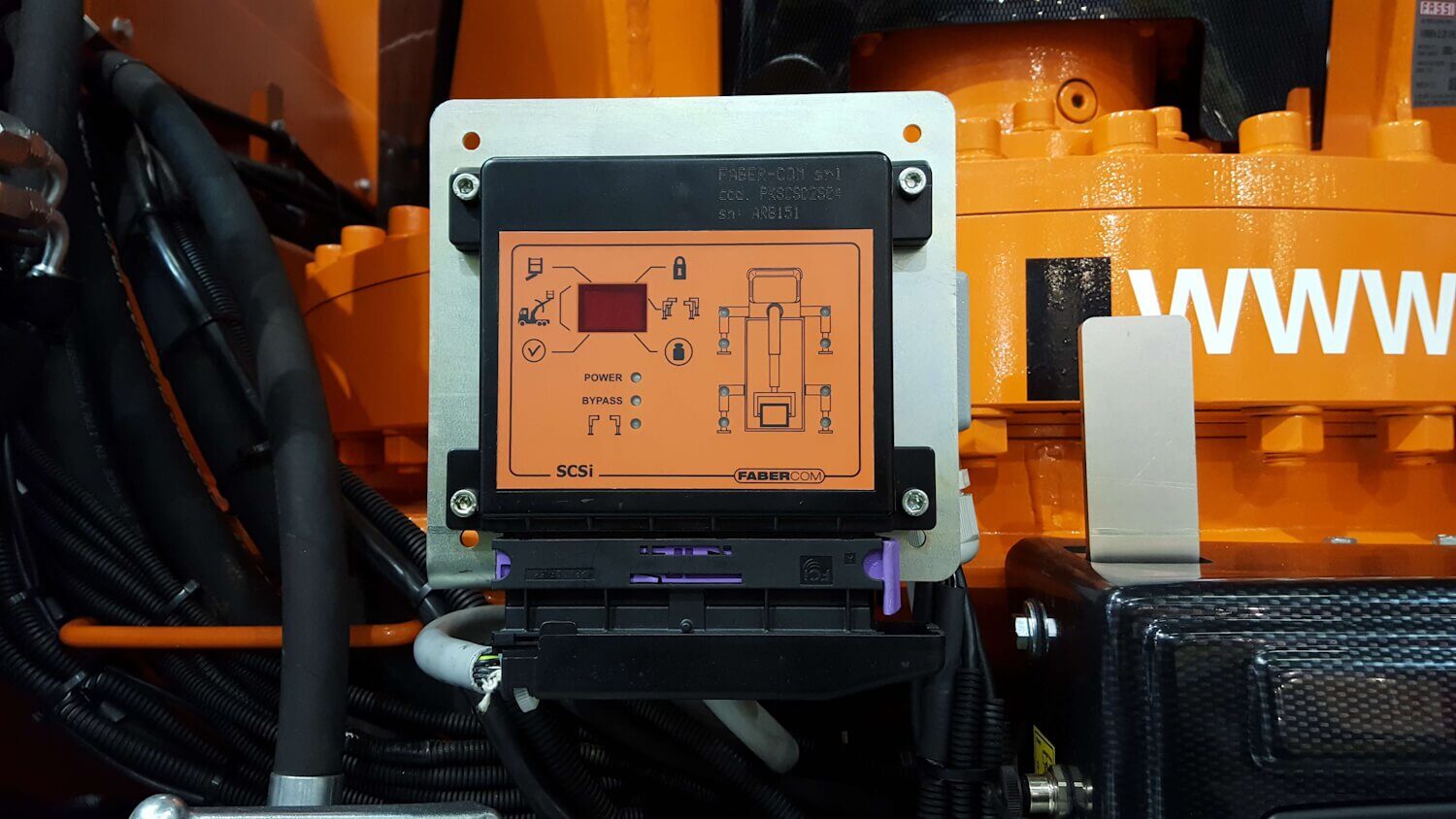

The SCSi is an advanced stabilizer control system specifically designed to monitor the operational activities of truck-mounted cranes during the installation of the platform basket (WMB).

The control unit features a dual microprocessor electronic board and integrates all the safety functions required by the EN280-A standard, which governs Mobile Elevating Work Platforms and cranes.

With its highly secure and reliable design, the control unit utilizes a redundant electronic architecture, ensuring superior safety performance. It includes up to five safety outputs in category 3, as per UNI EN ISO 13849-1 standards.

Additionally, the electronic board incorporates a continuous input self-test to further enhance its reliability.

Get into the specifics

Technical information about SCSi

Technical information
  • Power supply: 12 or 24 VDC ±20%
  • Working temperature range: -20 - +70 °C / -4 - 158F
  • Overall dimensions: 160 x 190 x 40 mm / 6.3 x 7.5 x 1.6 in
  • Standards: EN 13309 - EN ISO 14982
  • IP-Class: IP65
